VQ37VHR: Exploded View

WARNING: This page is about a different variant/trim than selected.

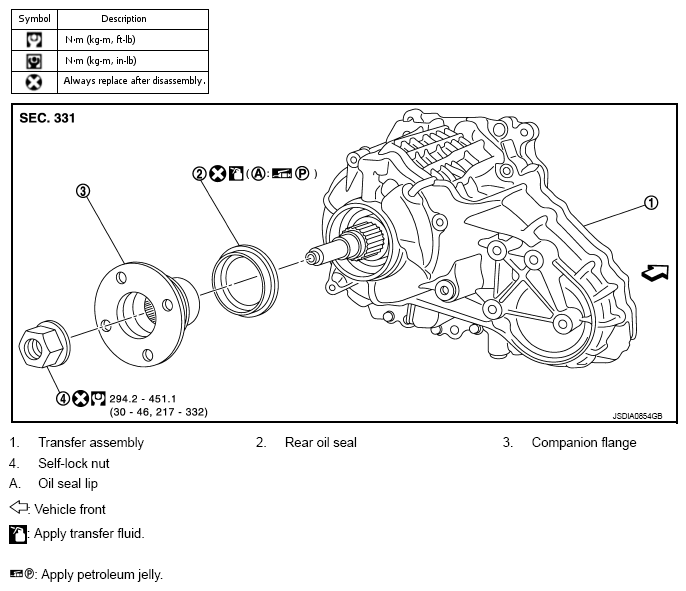

Fig 1: Exploded View Of Rear Oil Seal (VQ37VHR) With Torque Specifications
G09002557Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "SYMBOLS " for symbols not described above.
