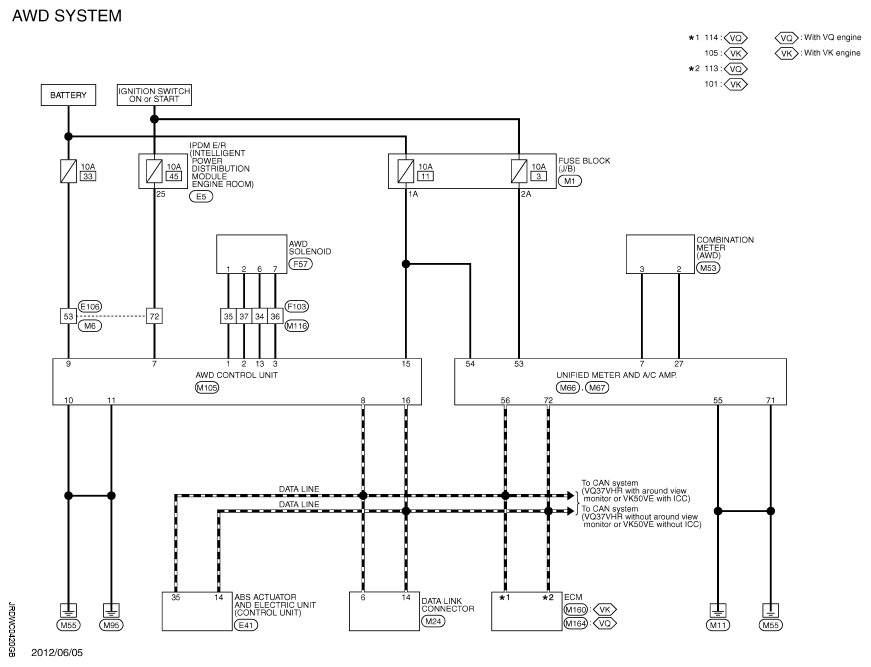

Wiring Diagram - AWD SYSTEM
WARNING: This page is about a different variant/trim than selected.
For connector terminal arrangements, harness layouts, and letters in a "diamond shape" symbol (option abbreviation; if not described in wiring diagram), refer to "CONNECTOR INFORMATION ".
