Overall Sequence

WARNING: This page is about a different car, the 2013 Infiniti FX50. However, it is still accessible from the selected car via links, so may be relevant.

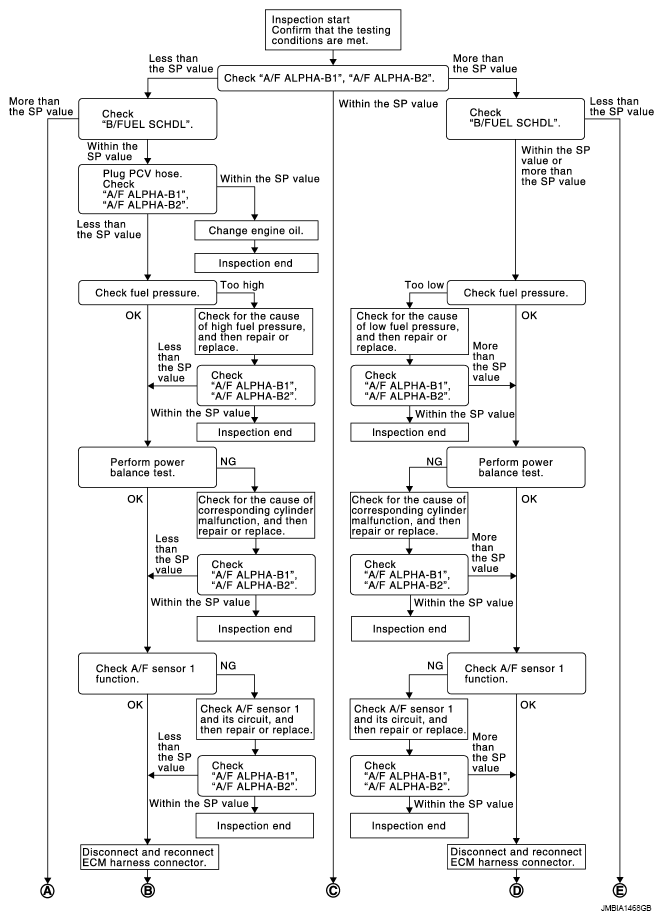

Fig 1: Trouble Diagnosis Procedure Chart (1 Of 2)
G09001360Courtesy of NISSAN NORTH AMERICA, INC.

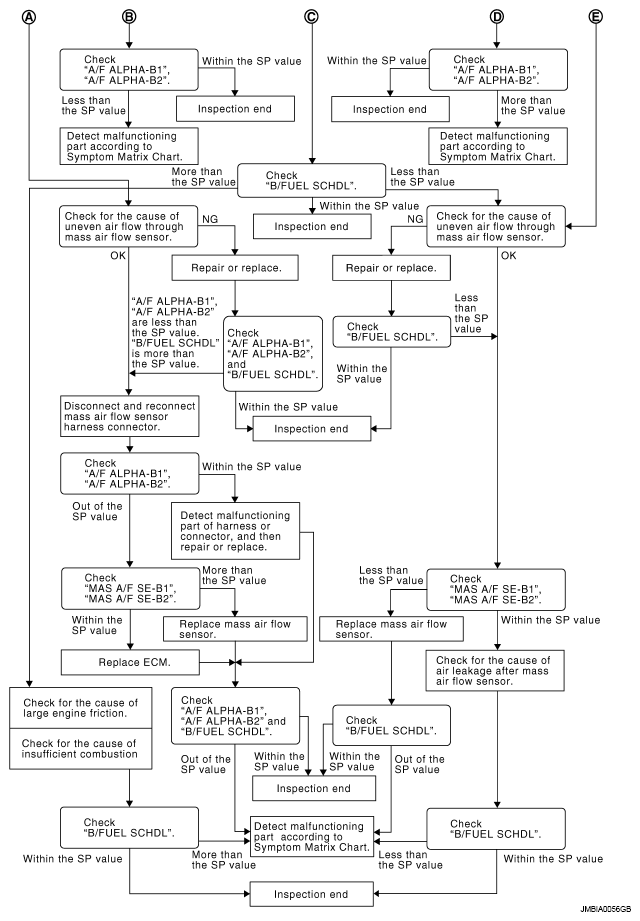

Fig 2: Trouble Diagnosis Procedure Chart (2 Of 2)
G09001361Courtesy of NISSAN NORTH AMERICA, INC.
