EXPANSION VALVE: Removal and Installation: Removal

WARNING: This page is about a different car, the 2013 Infiniti FX50. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove low-pressure pipe 1 and high-pressure pipe 2. Refer to "EXPLODED VIEW ".
  2. Remove mounting bolts (A), and then remove expansion valve (1).
    CAUTION: Cap or wrap the joint of evaporator and expansion valve with suitable material such as vinyl tape to avoid the entry of air.

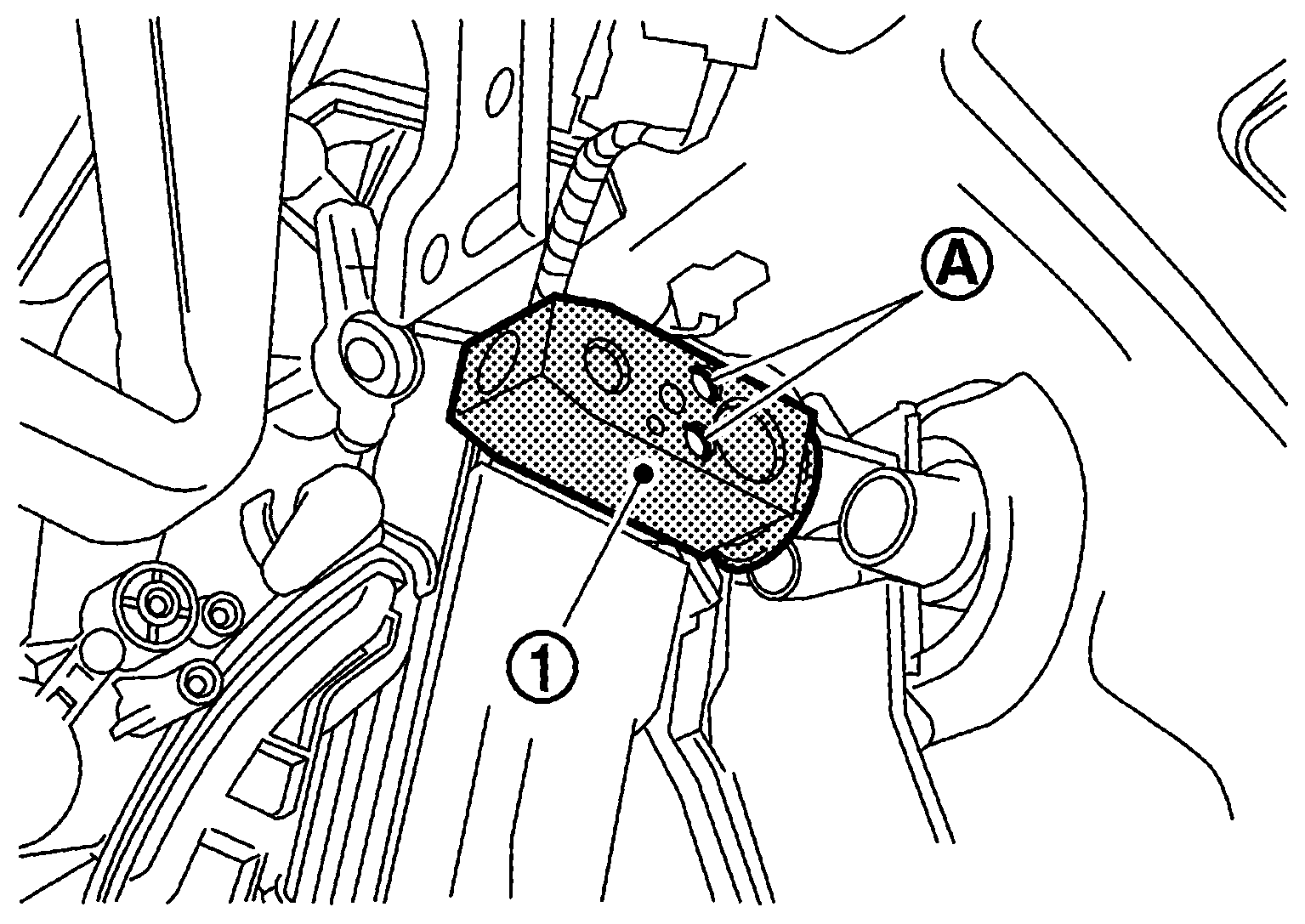

    Fig 1: Locating Expansion Valve And Mounting Bolts
    G05727673Courtesy of NISSAN NORTH AMERICA, INC.
