LOW-PRESSURE PIPE 3: Removal and Installation: Removal

WARNING: This page is about a different car, the 2013 Infiniti FX50. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove hoodledge cover LH. Refer to "EXPLODED VIEW ".
  2. Use a refrigerant collecting equipment (for HFC-134a) to discharge the refrigerant.
  3. Remove air cleaner case (bank 1). Refer to "EXPLODED VIEW ".
  4. Remove mounting nut (A), and remove low-pressure flexible hose (1) a position without the hindrance for work.
    CAUTION: Cap or wrap the joint of the A/C piping with suitable material such as vinyl tape to avoid the entry of air.

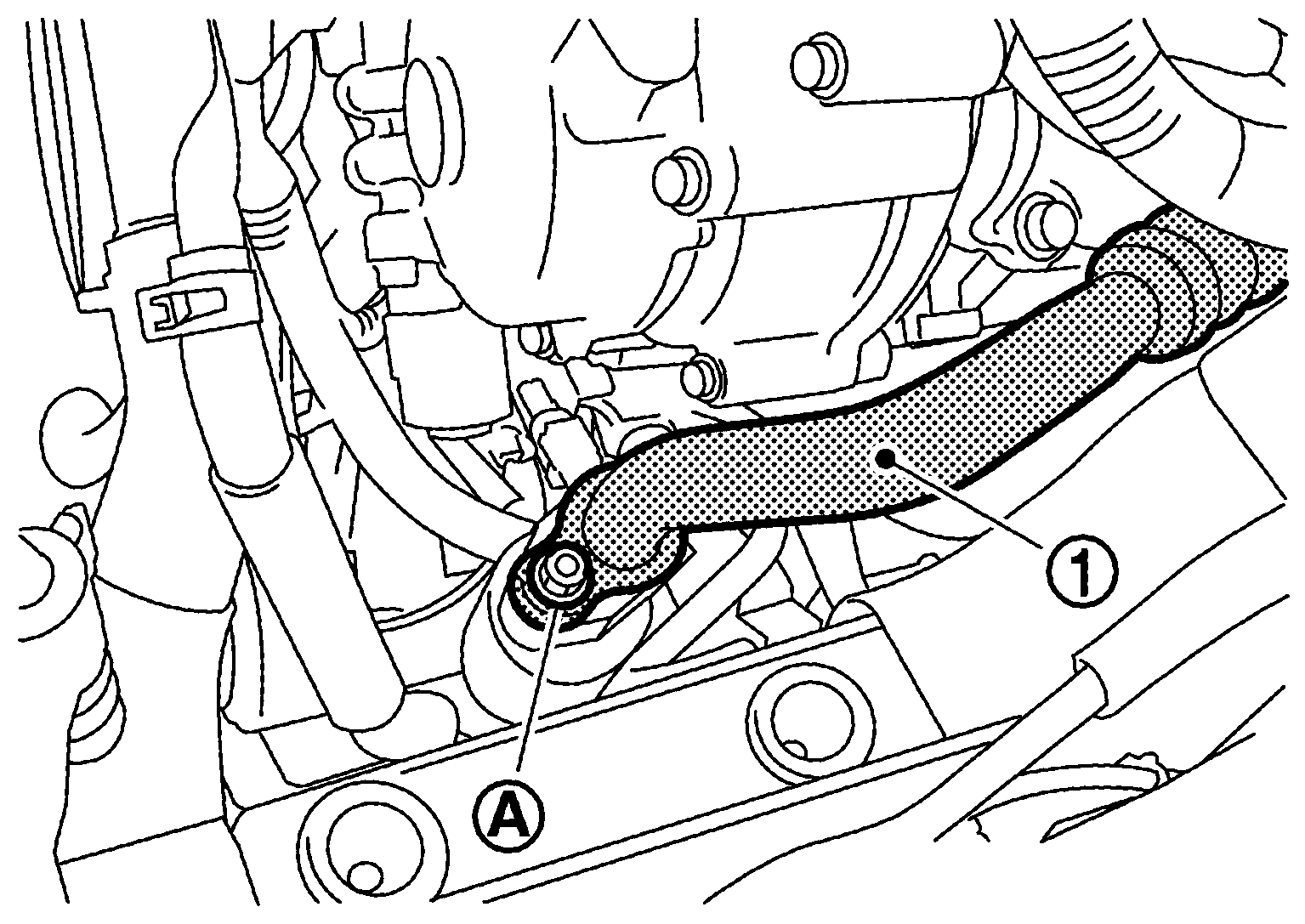

    Fig 1: Locating Low Pressure Flexible Hose And Mounting Nut
    G05981669Courtesy of NISSAN NORTH AMERICA, INC.
  5. Remove mounting nut (A), and then remove low-pressure pipe 3 (1).
    CAUTION: Cap or wrap the joint of the A/C piping and compressor with suitable material such as vinyl tape to avoid the entry of air.

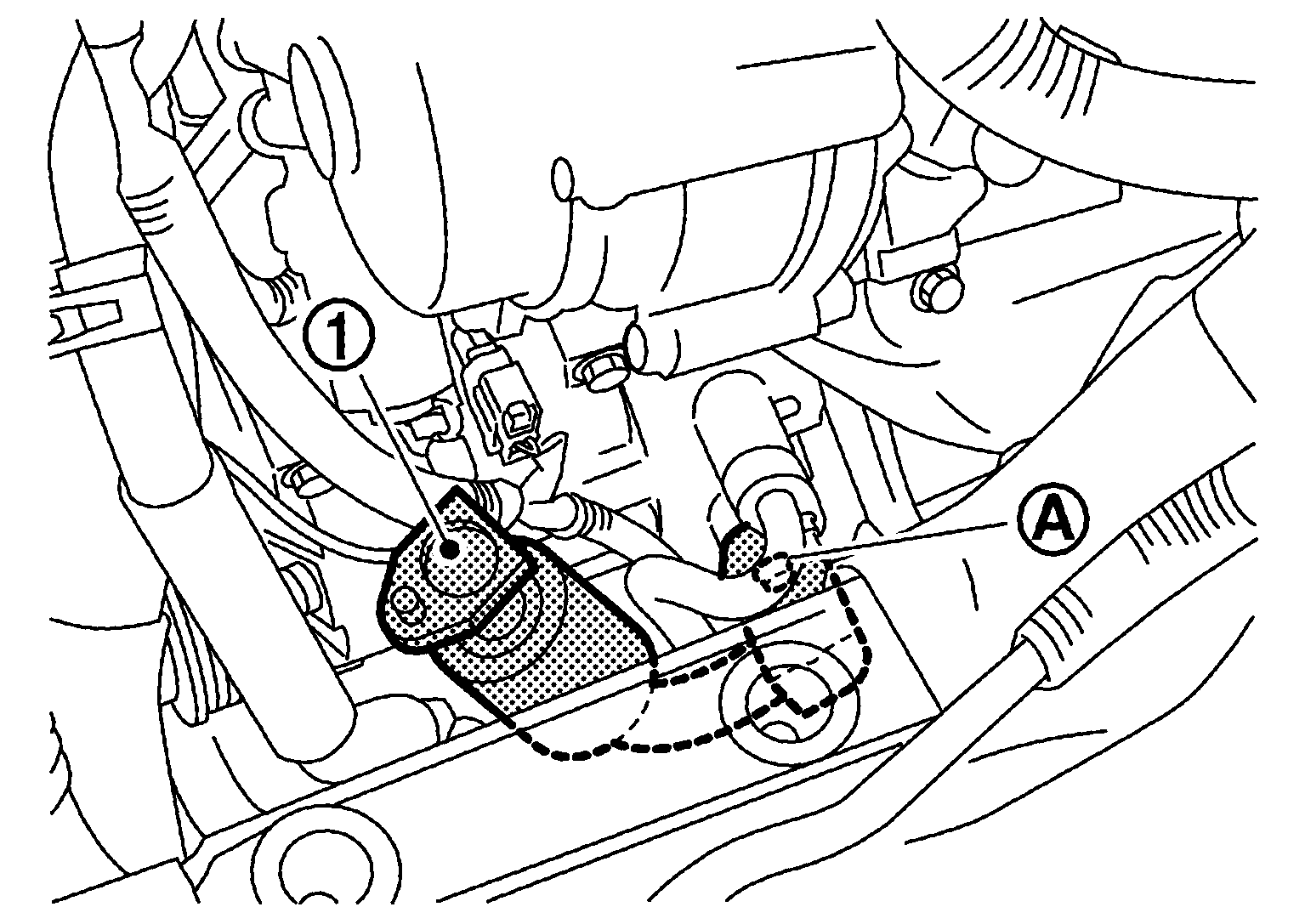

    Fig 2: Locating Low Pressure Pipe And Mounting Nut
    G05981680Courtesy of NISSAN NORTH AMERICA, INC.
