HIGH-PRESSURE PIPE 1: Removal and Installation: Removal

WARNING: This page is about a different car, the 2013 Infiniti FX50. However, it is still accessible from the selected car via links, so may be relevant.

Remove low-pressure flexible hose and low-pressure pipe 2. Refer to "EXPLODED VIEW ".
Remove fixing clamp (A), and then disconnect vacuum hose (1). Refer to "EXPLODED VIEW ".

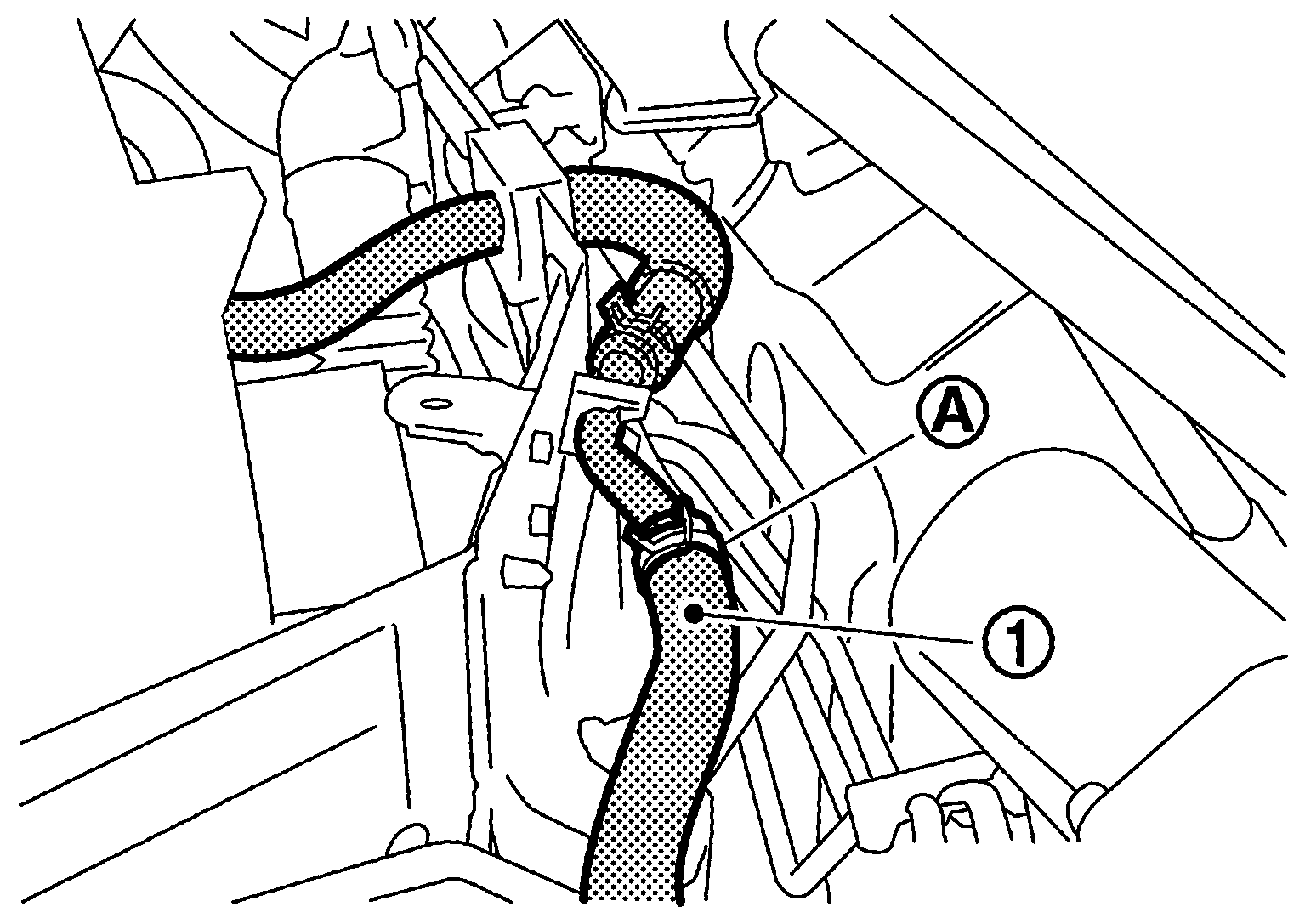

Fig 1: Locating Vacuum Hose And Fixing Clamp
Courtesy of NISSAN NORTH AMERICA, INC.
Remove ground bolts (A).
Remove high-pressure pipe 1 (1) from vehicle clip (B).

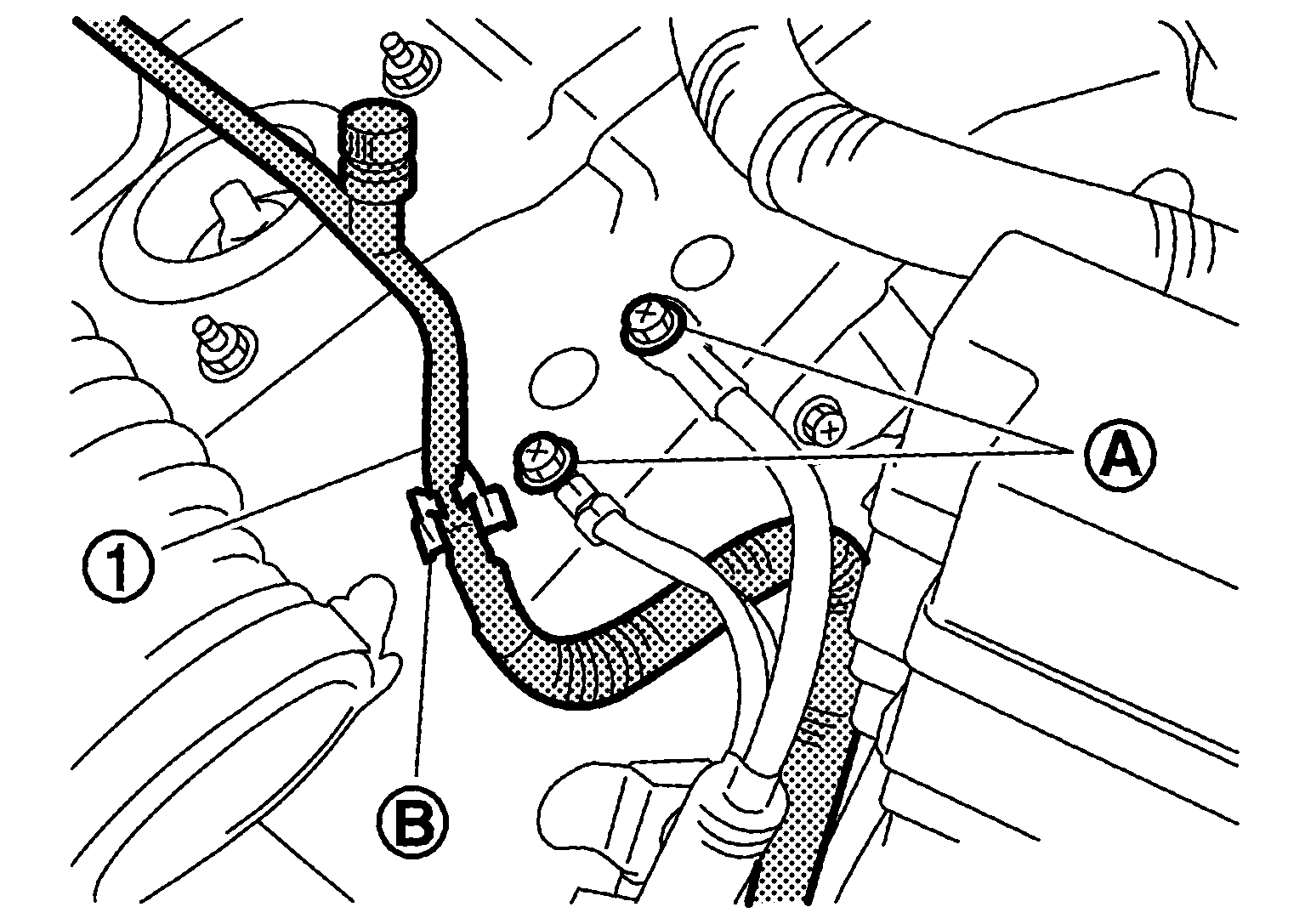

Fig 2: Locating High Pressure Pipe, Vehicle Clip And Ground Bolt
Courtesy of NISSAN NORTH AMERICA, INC.
Remove high-pressure pipe 1 (1) from vehicle clip (A).
Disconnect one-touch joint between high-pressure pipe 1 and condenser pipe assembly with disconnector (B) (SST: 9253089908).
CAUTION: Cap or wrap the joint of the A/C piping with suitable material such as vinyl tape to avoid the entry of air.

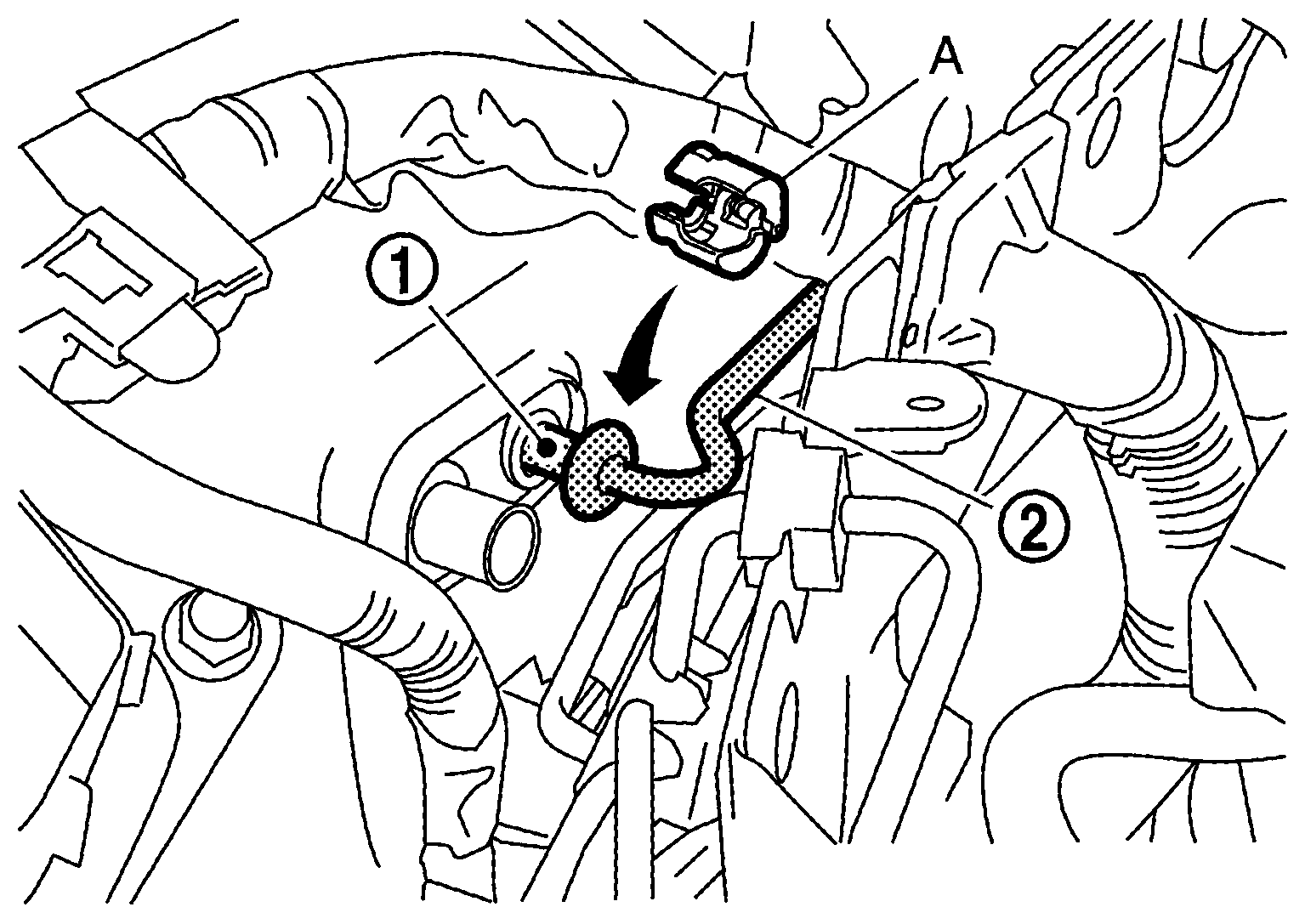

Fig 3: Disconnecting One Touch Joint Between High Pressure Pipe 1 And Condenser Pipe Assembly Using Disconnector
Courtesy of NISSAN NORTH AMERICA, INC.
Disconnect one-touch joint between high-pressure pipe 1 (2) and high-pressure pipe 2 (1) with disconnector (A) (SST: 9253089908).
CAUTION: Cap or wrap the joint of the A/C piping with suitable material such as vinyl tape to avoid the entry of air.

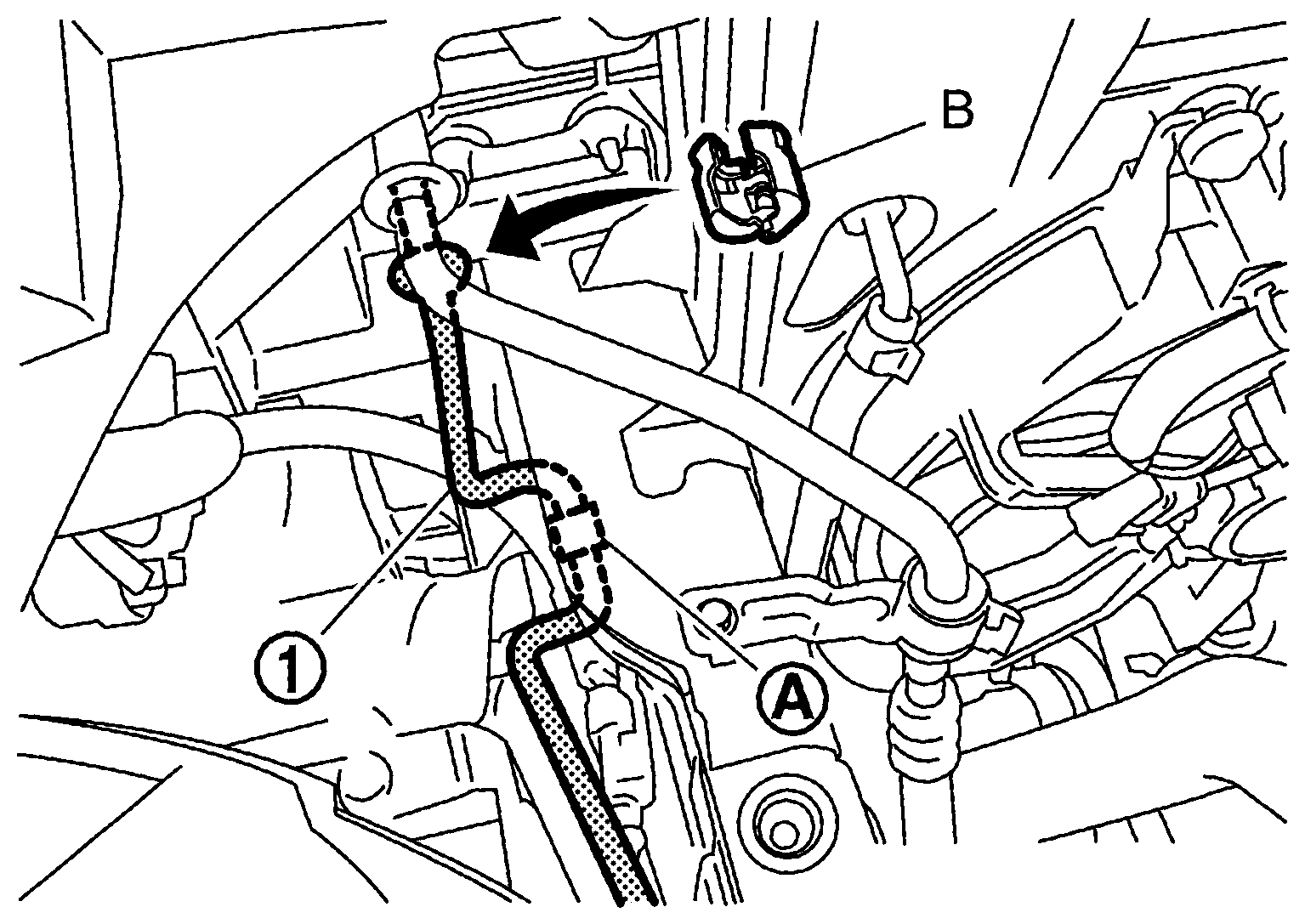

Fig 4: Disconnecting One Touch Joint Between High Pressure Pipe 1 And High Pressure Pipe 2 Using Disconnector
Courtesy of NISSAN NORTH AMERICA, INC.
Remove high-pressure pipe 1.
