HIGH-PRESSURE FLEXIBLE HOSE: Removal and Installation: Removal

WARNING: This page is about a different car, the 2013 Infiniti FX50. However, it is still accessible from the selected car via links, so may be relevant.

Remove hoodledge cover LH. Refer to "EXPLODED VIEW ".
Use a refrigerant collecting equipment (for HFC-134a) to discharge the refrigerant.
Remove air cleaner case (bank 1). Refer to "EXPLODED VIEW ".
Remove mounting bolt (A) from high-pressure flexible hose bracket (1).

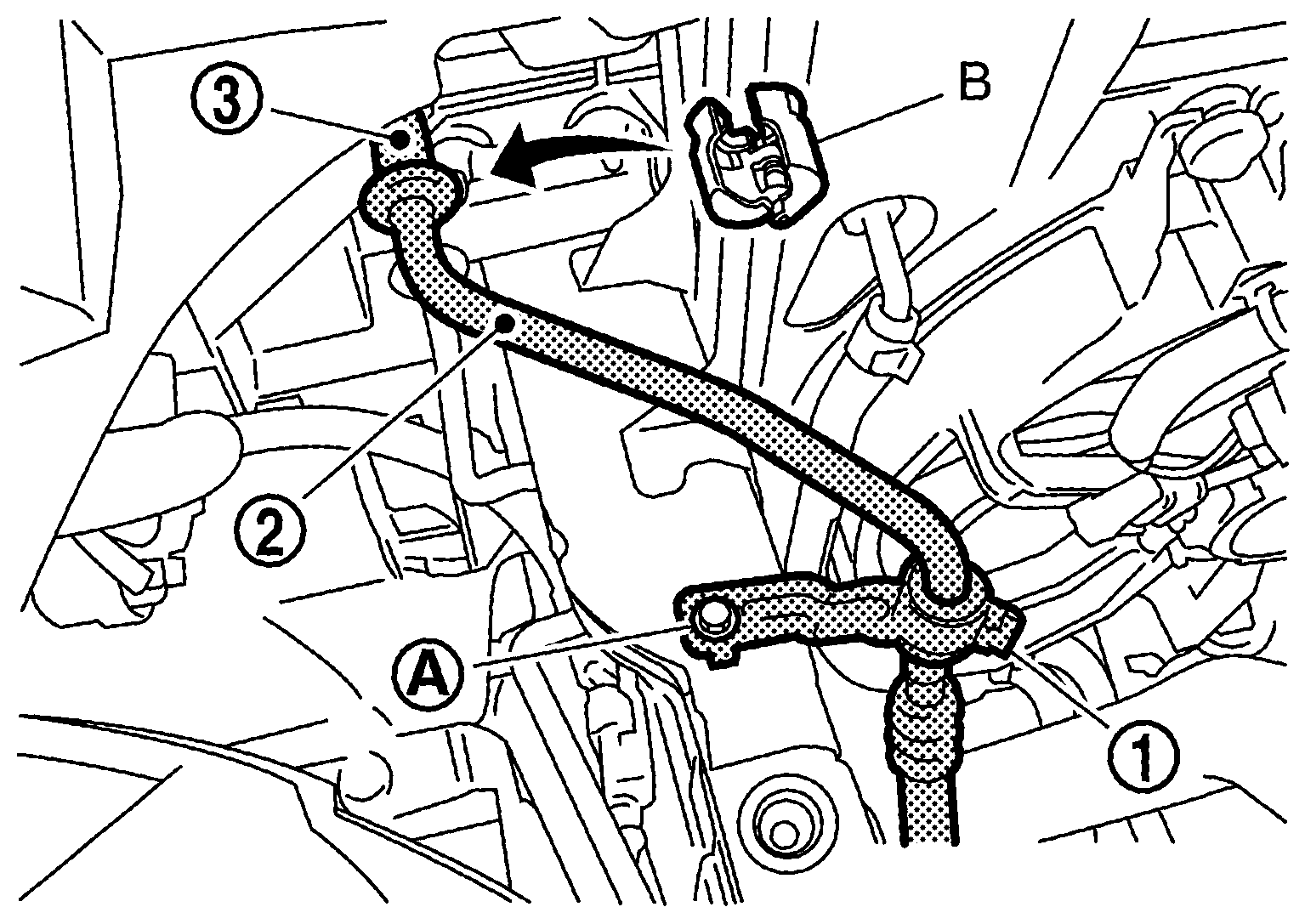

Fig 1: Locating High Pressure Flexible Hose, Condenser Pipe, Bracket And Mounting Bolt
Courtesy of NISSAN NORTH AMERICA, INC.
Disconnect one-touch joint between high-pressure flexible hose (2) and condenser pipe assembly (3) with disconnector (B) (SST: 9253089912).
CAUTION: Cap or wrap the joint of the A/C piping with suitable material such as vinyl tape to avoid the entry of air.
Remove mounting nut (A), and remove low-pressure flexible hose (1) a position without the hindrance for work.
CAUTION: Cap or wrap the joint of the A/C piping and compressor with suitable material such as vinyl tape to avoid the entry of air.

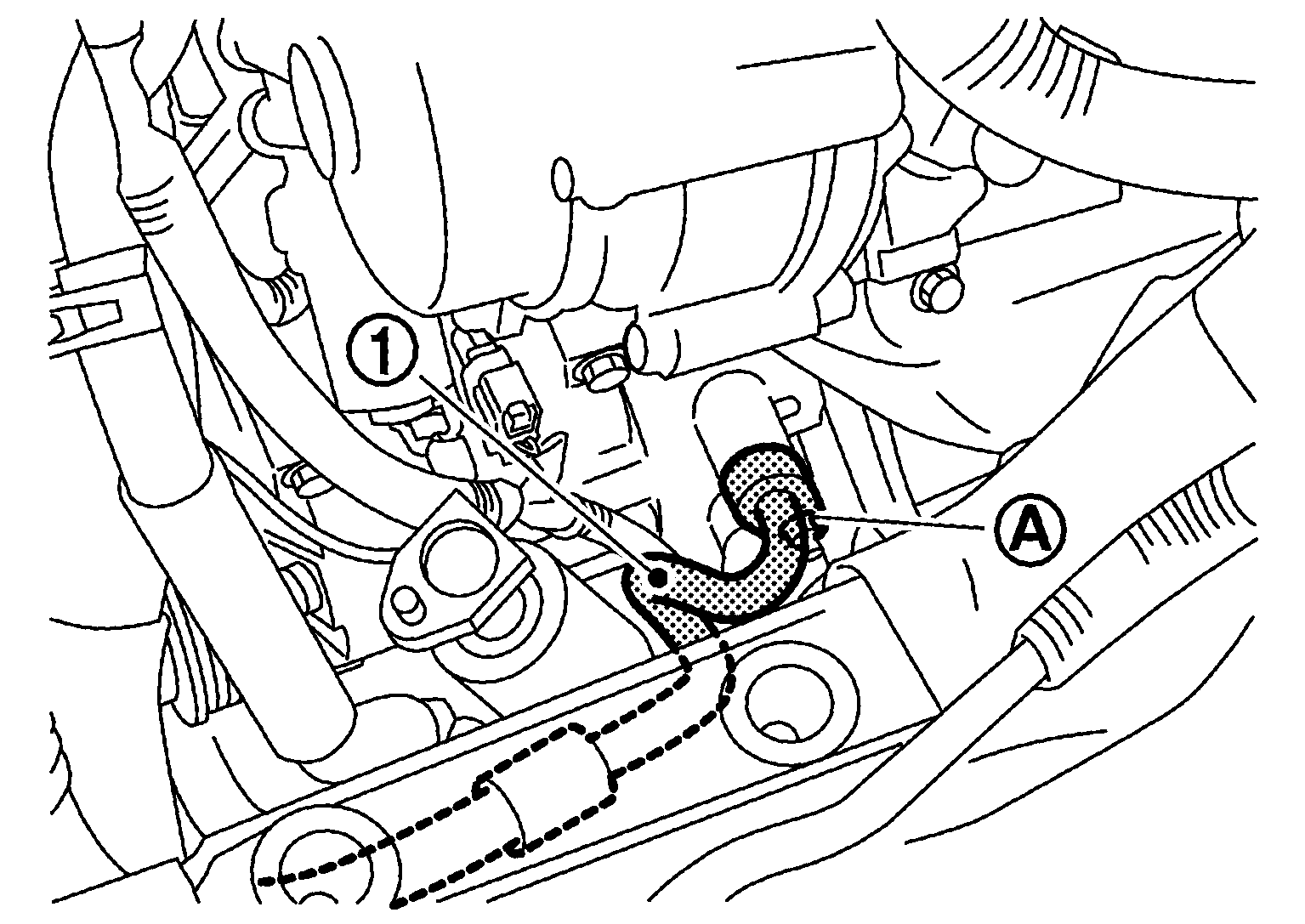

Fig 2: Locating Low Pressure Flexible Hose And Mounting Nut
Courtesy of NISSAN NORTH AMERICA, INC.
Remove mounting nut (A), and then remove high-pressure flexible hose (1).
CAUTION: Cap or wrap the joint of the A/C piping and compressor with suitable material such as vinyl tape to avoid the entry of air.

Fig 3: Locating High Pressure Flexible Hose And Mounting Nut
Courtesy of NISSAN NORTH AMERICA, INC.
