LIQUID TANK: Removal and Installation: Removal

WARNING: This page is about a different car, the 2013 Infiniti FX50. However, it is still accessible from the selected car via links, so may be relevant.

Use a refrigerant collecting equipment (for HFC-134a) to discharge the refrigerant.
Remove air duct (inlet). Refer to "EXPLODED VIEW ".
Disconnect refrigerant pressure sensor connector (A).

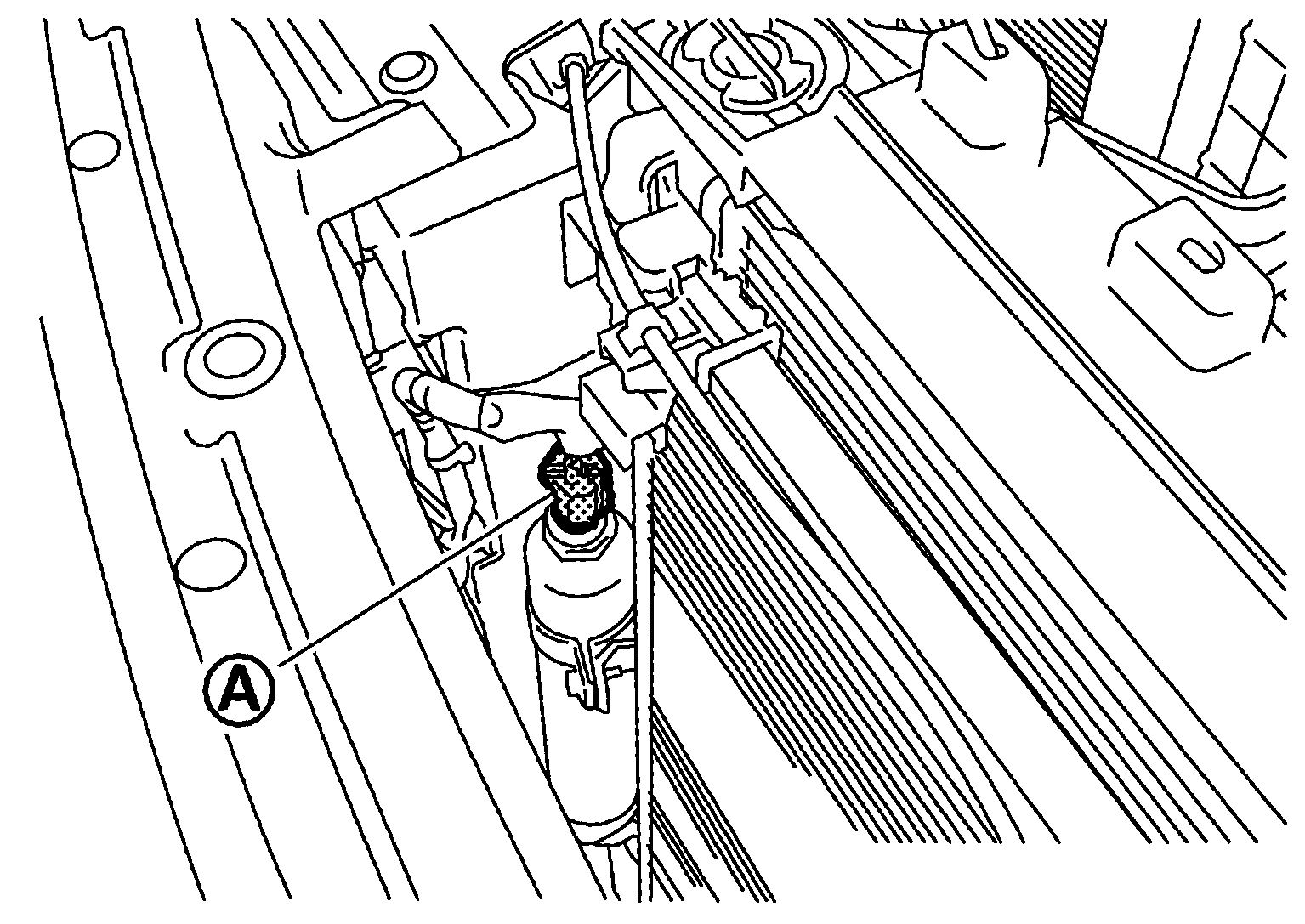

Fig 1: Locating Refrigerant Pressure Sensor Connector
Courtesy of NISSAN NORTH AMERICA, INC.
Clean liquid tank and its surrounding area, and then remove dust and rust from liquid tank.
CAUTION: Be sure to clean carefully.
Remove mounting bolts (A), and then remove liquid tank (1).
CAUTION: Cap or wrap the joint of the A/C piping and liquid tank with suitable material such as vinyl tape to avoid the entry of air.

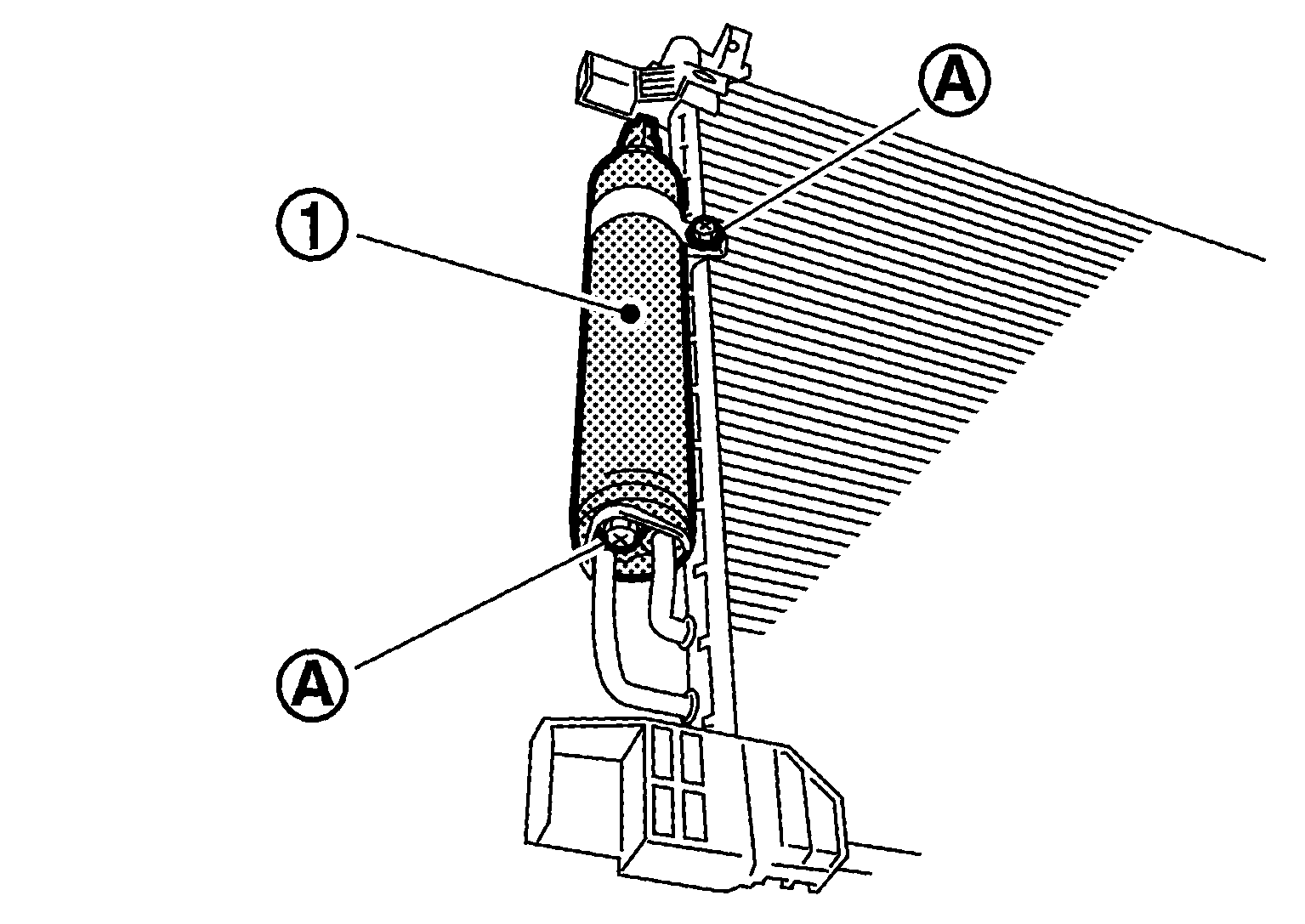

Fig 2: Locating Liquid Tank And Mounting Bolts
Courtesy of NISSAN NORTH AMERICA, INC.
