Removal and Installation: Removal

WARNING: This page is about a different car, the 2013 Infiniti FX50. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove cooling fan assembly. Refer to "EXPLODED VIEW ".
  2. Remove low-pressure pipe 3. Refer to "EXPLODED VIEW ".
  3. Remove drive belt. Refer to "REMOVAL AND INSTALLATION ".
  4. Remove mounting nut (A), and then disconnect high-pressure flexible hose (1).
    CAUTION: Cap or wrap the joint of the A/C piping and compressor with suitable material such as vinyl tape to avoid the entry of air.

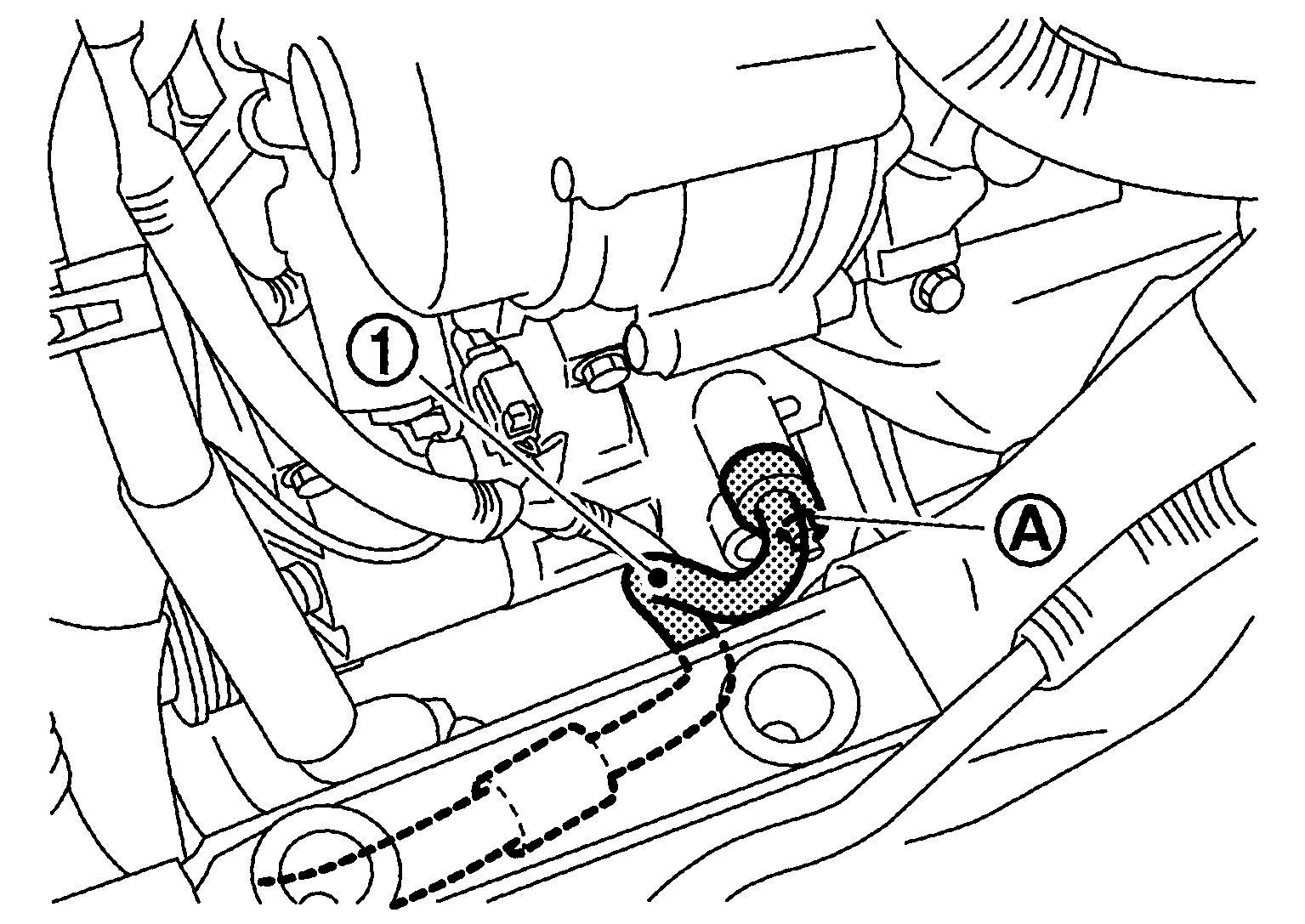

    Fig 1: Locating Compressor High Pressure Flexible Hose And Mounting Nut
    G05981661Courtesy of NISSAN NORTH AMERICA, INC.
  5. Disconnect compressor (ECV) connector (A).
  6. Disconnect compressor (magnet clutch) connector (B).
  7. Remove harness fixing clip (C)

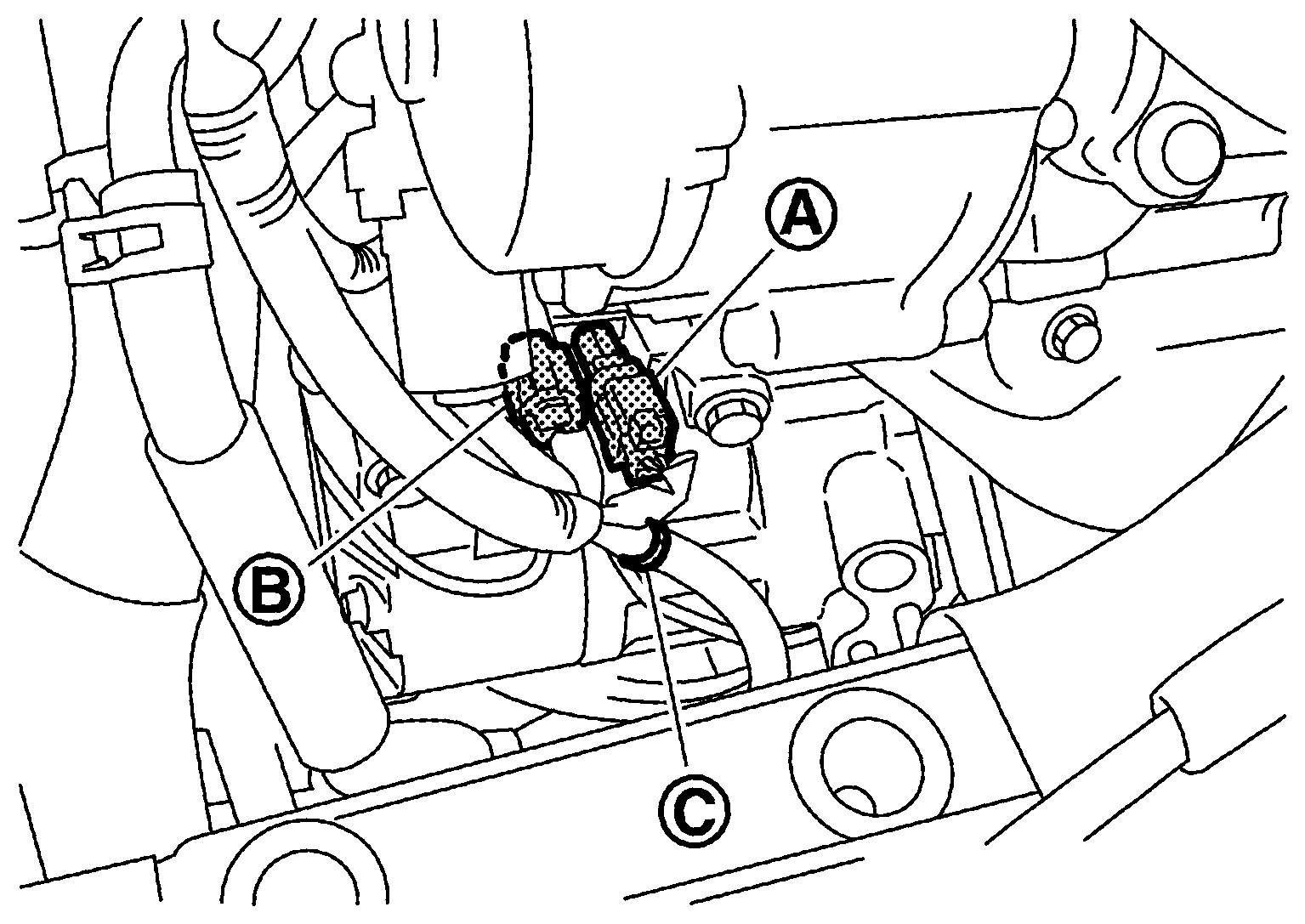

    Fig 2: Locating ECV And Magnet Clutch Connector
    G05981662Courtesy of NISSAN NORTH AMERICA, INC.
  8. Remove mounting bolt (A), and water suction pipe (1) a position without the hindrance for work. Refer to "EXPLODED VIEW ".

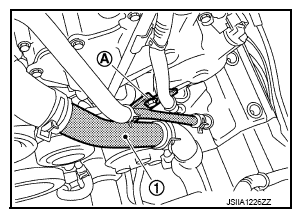

    Fig 3: Locating Water Suction Pipe And Mounting Bolt
    G08226317Courtesy of NISSAN NORTH AMERICA, INC.
  9. Remove floor under cover. Refer to "EXPLODED VIEW ".
  10. Remove mounting bolt (A), and then remove harness bracket a position without the hindrance for work.
  11. Remove mounting bolt (B) from compressor (1).

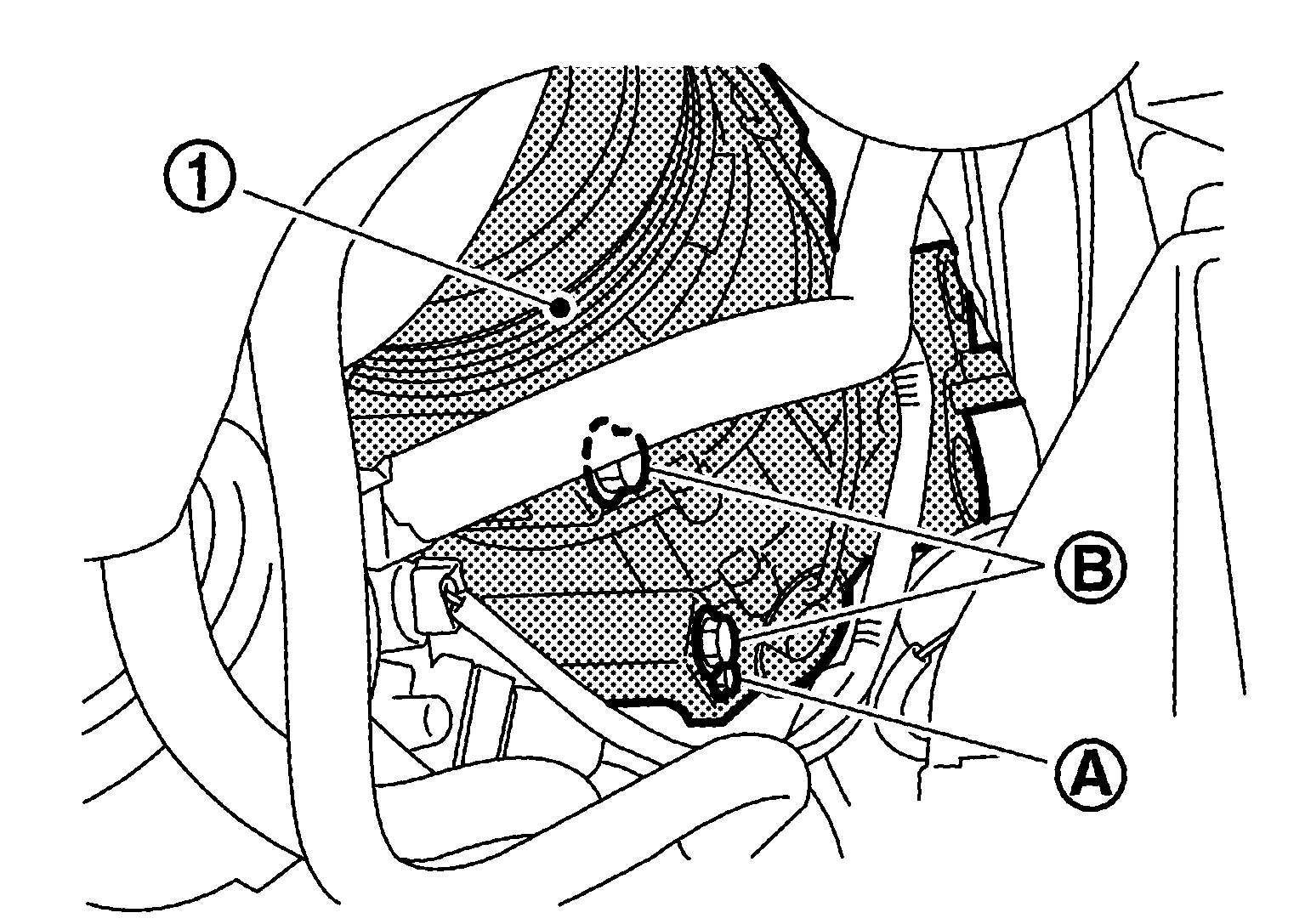

    Fig 4: Locating Compressor Mounting Bolts
    G05981664Courtesy of NISSAN NORTH AMERICA, INC.
  12. Remove mounting bolts (A), and then remove compressor from upper side of the vehicle.

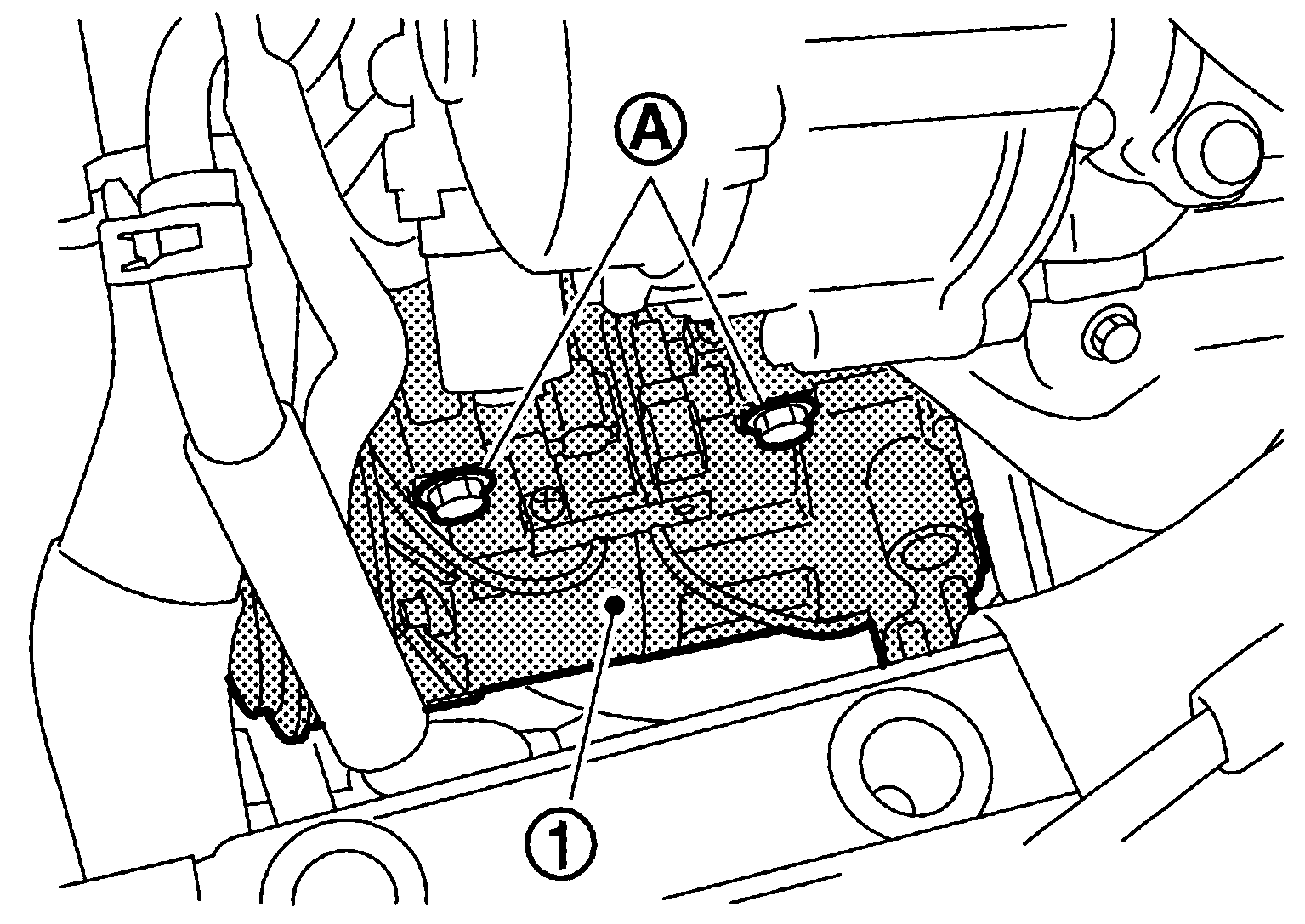

    Fig 5: Locating Compressor Mounting Bolts
    G05981665Courtesy of NISSAN NORTH AMERICA, INC.
