BLOWER UNIT: Removal and Installation: Removal

WARNING: This page is about a different car, the 2013 Infiniti FX50. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove instrument lower panel RH. Refer to "EXPLODED VIEW ".
  2. Disconnect AWD control unit connector. Refer to "EXPLODED VIEW ".
  3. Disconnect ECM (1) connectors.

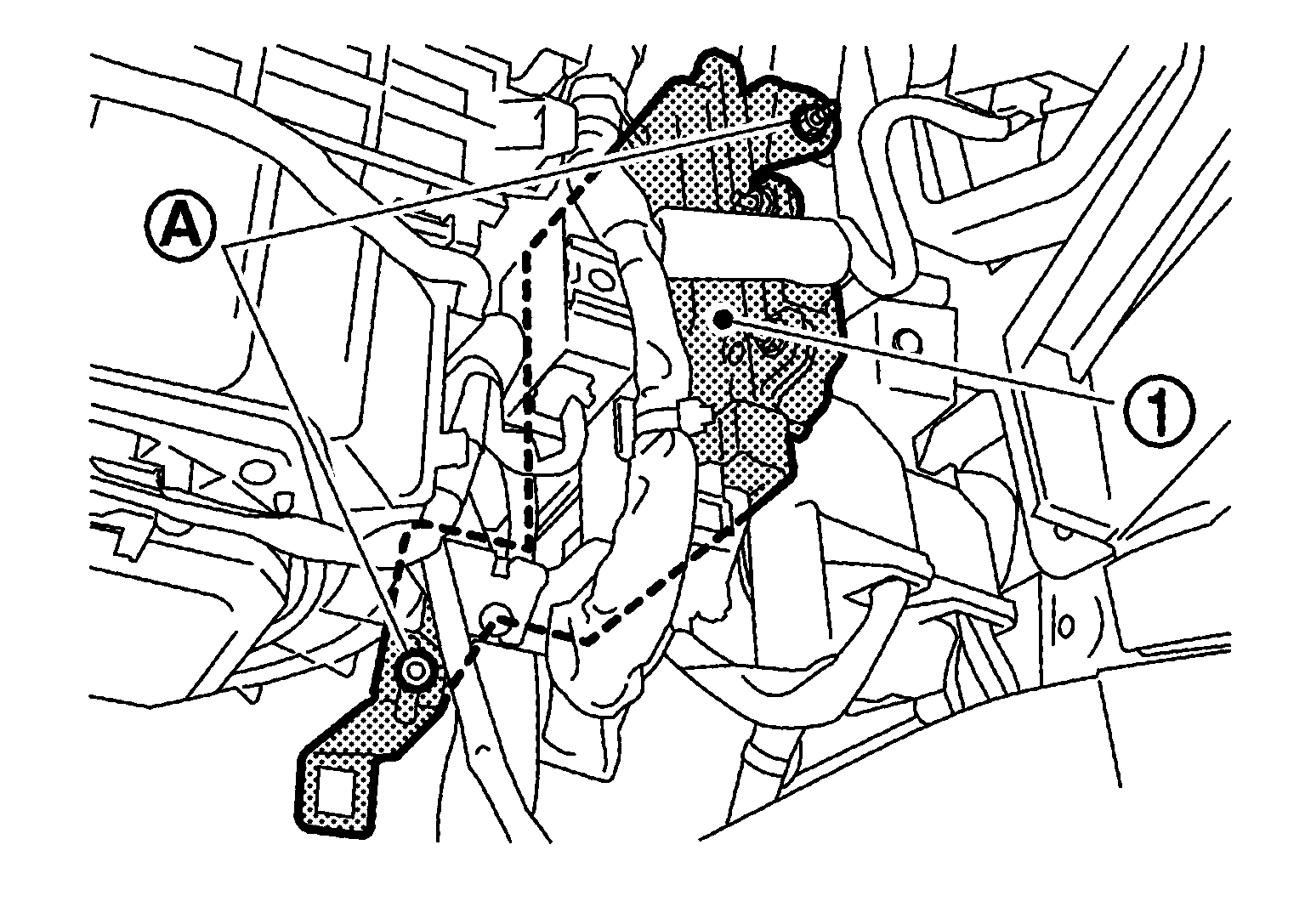

    Fig 1: Locating ECM Connectors And Mounting Nuts
    G05984625Courtesy of NISSAN NORTH AMERICA, INC.
  4. Remove mounting nuts (A), and then remove ECM with bracket attached.
  5. Remove power steering control unit. Refer to "REMOVAL AND INSTALLATION ".
  6. Disconnect intake door motor connector and blower motor connector.
  7. Remove mounting bolt (A) and screw (B), from blower unit (1).

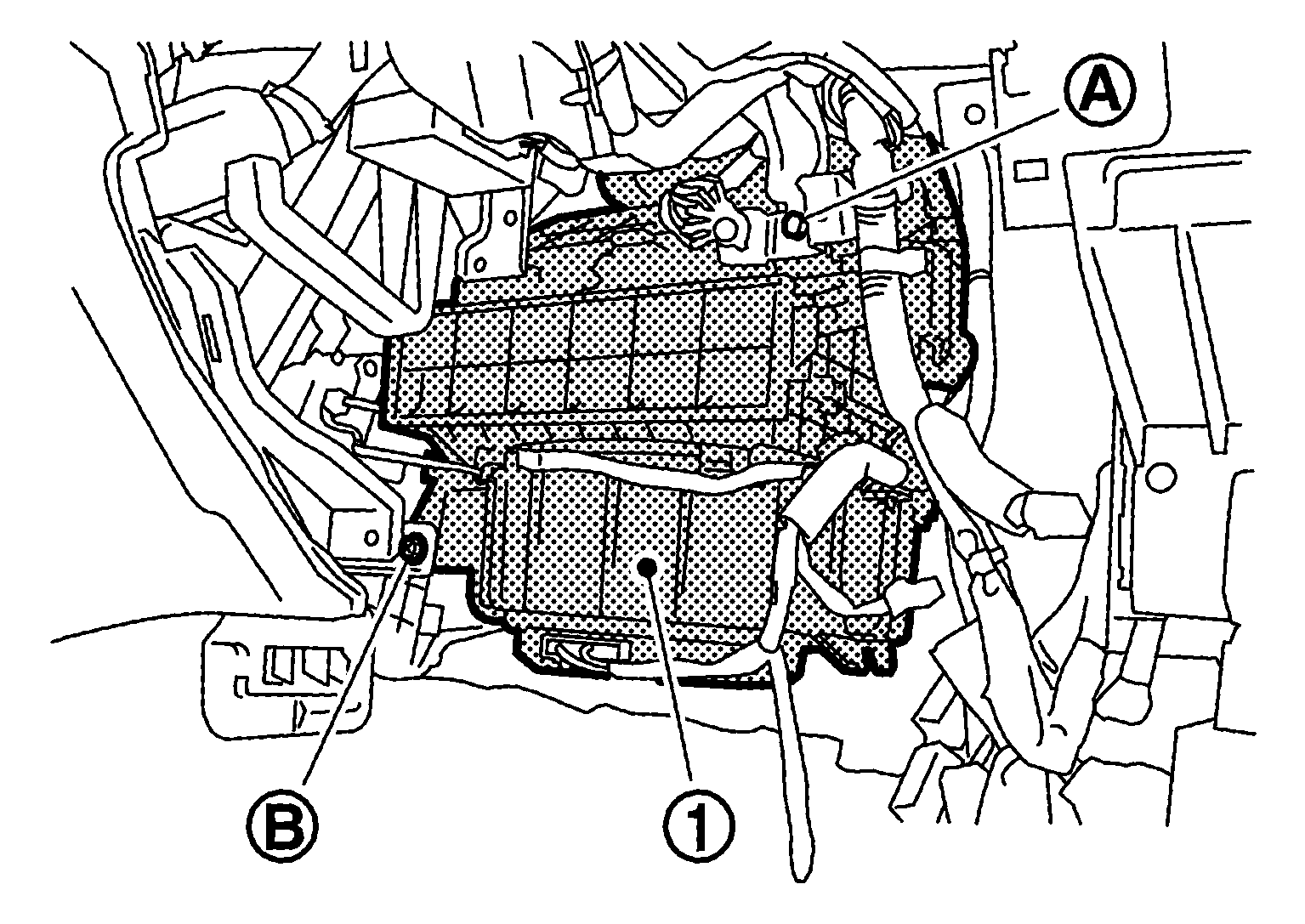

    Fig 2: Locating Blower Unit Assembly, Mounting Bolt And Fixing Screw
    G05984626Courtesy of NISSAN NORTH AMERICA, INC.
  8. Remove blower unit.
    CAUTION: Move blower unit rightward, and remove locating pin (1 part) and joint. Then remove blower unit downward.
