Under Drive Carrier, Front Brake Hub: Disassembly

WARNING: This page is about a different car, the 2013 Infiniti FX50. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove snap ring (1) from front brake hub using a flat-bladed screwdriver.
    CAUTION:
    • Be careful not to scratch front brake hub and under drive carrier assembly.
    • Be careful not to damage snap ring.

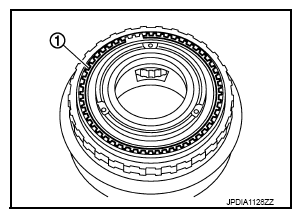

    Fig 1: Locating Front Brake Hub Snap Ring
    G09002462Courtesy of NISSAN NORTH AMERICA, INC.
  2. Remove under drive carrier assembly (1) from front brake hub.
    Fig 2: Removing Under Drive Carrier Assembly From Front Brake Hub
    G09002463Courtesy of NISSAN NORTH AMERICA, INC.
  3. Remove snap ring (1) from front brake hub using a flat-bladed screwdriver.
    CAUTION:
    • Be careful not to scratch front brake hub.
    • Be careful not to damage snap ring.
    Fig 3: Locating Front Brake Hub Snap Ring
    G09002464Courtesy of NISSAN NORTH AMERICA, INC.
