Under Drive Carrier, Front Brake Hub: Assembly

WARNING: This page is about a different car, the 2013 Infiniti FX50. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install snap ring (1) to front brake hub.
    CAUTION: Be careful not to damage snap ring.
    Fig 1: Locating Front Brake Hub Snap Ring
    G09002465Courtesy of NISSAN NORTH AMERICA, INC.
  2. Install under drive carrier assembly (1) to front brake hub.
    Fig 2: Installing Under Drive Carrier Assembly To Front Brake Hub
    G09002466Courtesy of NISSAN NORTH AMERICA, INC.
  3. Install snap ring (1) to front brake hub using a flat-bladed screwdriver.
    CAUTION:
    • Be careful not to scratch front brake hub.
    • Be careful not to damage snap ring.

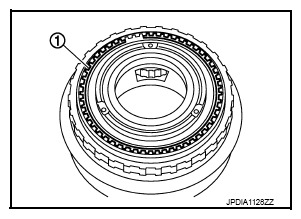

    Fig 3: Locating Front Brake Hub Snap Ring
    G09002467Courtesy of NISSAN NORTH AMERICA, INC.
