1st One-way Clutch

WARNING: This page is about a different car, the 2013 Infiniti FX50. However, it is still accessible from the selected car via links, so may be relevant.

Check operation of 1st one-way clutch.

  1. Install 1st one-way clutch (1) to front brake hub (with under drive carrier).
  2. Hold 1st one-way clutch.
  3. Check front brake hub for correct locking and unlocking directions. If necessary, replace 1st one-way clutch.

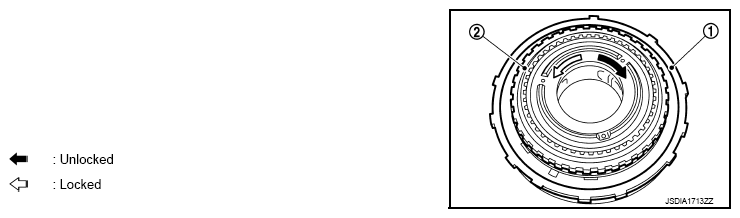

    Fig 1: Checking Operation Of One-Way Clutch
    G09002426Courtesy of NISSAN NORTH AMERICA, INC.
