2346 Brake Clearance
WARNING: This page is about a different car, the 2013 Infiniti FX50. However, it is still accessible from the selected car via links, so may be relevant.

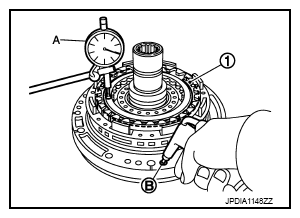

Set a dial indicator (A) as shown in the figure below. Blow air into 2346 brake oil pressure hole (B), and measure 2346 brake clearance. If clearance is outside the specified value, adjust clearance by selecting an appropriate snap ring (1). Refer to "OIL CHANNEL ".
Air pressure: 300kPa (3.06 kg/cm 2 , 43.5 psi)
2346 brake clearance: Refer to "2346 BRAKE CLEARANCE ".
CAUTION:
Never exceed the specified air pressure value.
