Oil Pump, 2346 Brake, Front Brake Piston: Assembly

WARNING: This page is about a different car, the 2013 Infiniti FX50. However, it is still accessible from the selected car via links, so may be relevant.

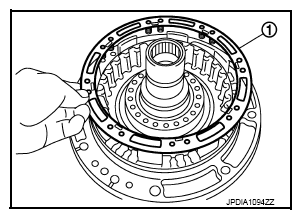

Install O-ring (1) to oil pump cover.

Fig 1: Installing O-Ring To Oil Pump Cover
Courtesy of NISSAN NORTH AMERICA, INC.
Install O-ring to oil pump housing.

Fig 2: Installing O-Ring To Oil Pump Housing
Courtesy of NISSAN NORTH AMERICA, INC.

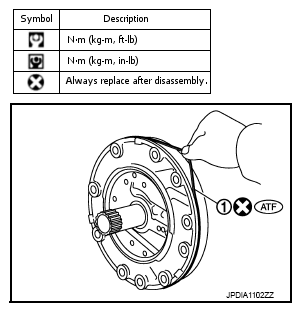

Using the drift, install oil pump housing oil seal to the oil pump housing until it is flush.
CAUTION:
- Never reuse oil seal.
- Apply ATF to oil seal.
Fig 3: Installing Oil Pump Housing Oil Seal Using Drift Tool
Courtesy of NISSAN NORTH AMERICA, INC.

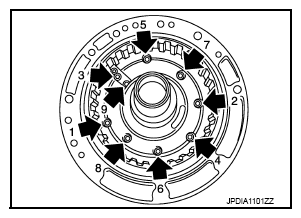

Install oil pump housing to oil pump cover and tighten bolts (←) to the specified torque in numerical order shown in the figure below, after temporarily tightening them.

Fig 4: Oil Pump Housing Mounting Bolts Tightening Sequence
Courtesy of NISSAN NORTH AMERICA, INC.
Install D-ring (large) (1) and D-ring (small) (2) to 2346 brake piston.

Fig 5: Installing Brake Piston D-Ring (Large And Small)
Courtesy of NISSAN NORTH AMERICA, INC.
Install 2346 brake piston (1) to oil pump assembly.

Fig 6: Installing 2346 Brake Piston To Oil Pump Assembly
Courtesy of NISSAN NORTH AMERICA, INC.
Install D-ring (inner) (1) and D-ring (outer) (2) to front brake piston.

Fig 7: Installing Front Brake Piston D-Ring (Inner And Outer)
Courtesy of NISSAN NORTH AMERICA, INC.

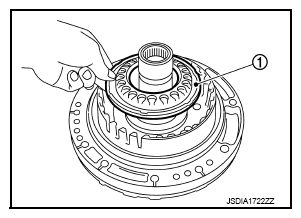

Install front brake piston (1) to oil pump assembly.

Fig 8: Installing Front Brake Piston To Oil Pump Assembly
Courtesy of NISSAN NORTH AMERICA, INC.

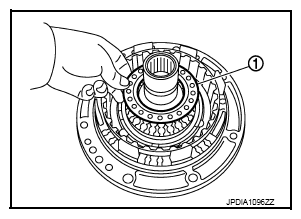

Install 2346 brake spring retainer (1) to oil pump assembly.

Fig 9: Installing 2346 Brake Spring Retainer To Oil Pump Assembly
Courtesy of NISSAN NORTH AMERICA, INC.
Set the clutch spring compressor [SST: KV31102400 (J-34285 and J-34285-87)] (A) on 2346 brake spring retainer and install snap ring (fixing 2346 brake spring retainer) (1) to oil pump assembly while compressing return spring.

Fig 10: Installing Snap Ring To Oil Pump Assembly Using Clutch Spring Compressor
Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION: Be careful not to expand snap ring excessively.

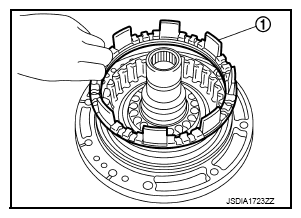

Install front brake spring retainer (1) to oil pump assembly.

Fig 11: Installing Front Brake Spring Retainer To Oil Pump Assembly
Courtesy of NISSAN NORTH AMERICA, INC.

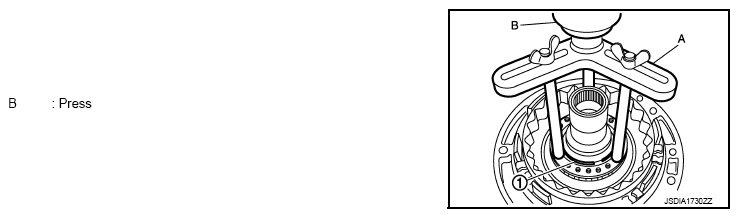

Set the clutch spring compressor (SST: KV31103800) (A) on front brake spring retainer and install snap ring (fixing front brake spring retainer) (1) to oil pump assembly while compressing return spring.
CAUTION: Be careful not to expand snap ring excessively.

Fig 12: Installing Snap Ring To Oil Pump Assembly Using Clutch Spring Compressor (SST KV31103800)
Courtesy of NISSAN NORTH AMERICA, INC.

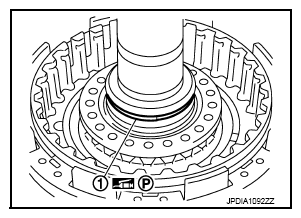

Install seal ring (1) to oil pump assembly.

Fig 13: Installing Oil Pump Assembly Seal Ring
Courtesy of NISSAN NORTH AMERICA, INC.
Install 2346 brake component part (retaining plate, drive plates, driven plates, and dish plate) to oil pump assembly.

Fig 14: Identifying Brake Component Part
Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION: Check the order of plates.

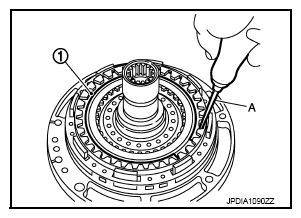

Install snap ring (1) to oil pump assembly using a flat-bladed screwdriver (A).

Fig 15: Installing Snap Ring To Oil Pump Assembly Using Flat-Bladed Screwdriver
Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION: Never install snap ring mating part (A) to the clearance groove [(B) shown in the figure below] of oil pump cover.

Fig 16: Identifying Snap Ring Mating Part And Clearance Groove
Courtesy of NISSAN NORTH AMERICA, INC.
