Mid Sun Gear, Rear Sun Gear, High And Low Reverse Clutch Hub: Disassembly

WARNING: This page is about a different car, the 2013 Infiniti FX50. However, it is still accessible from the selected car via links, so may be relevant.

Remove needle bearing and bearing races from high and low reverse clutch hub.

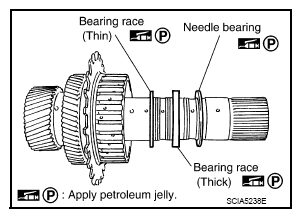

Fig 1: Locating Needle Bearing And Bearing Races (Thin And Thick)
Courtesy of NISSAN NORTH AMERICA, INC.
Remove snap ring from mid sun gear assembly using pair of snap ring pliers.
CAUTION: Be careful not to expand snap ring excessively.

Fig 2: Removing Snap Ring From Mid Sun Gear Assembly Using Pair Of Snap Ring Pliers
Courtesy of NISSAN NORTH AMERICA, INC.
Remove high and low reverse clutch hub from mid sun gear assembly.

Fig 3: Removing High And Low Reverse Clutch Hub From Mid Sun Gear Assembly
Courtesy of NISSAN NORTH AMERICA, INC.
Remove needle bearing from high and low reverse clutch hub.

Fig 4: Removing Needle Bearing From High And Low Reverse Clutch Hub
Courtesy of NISSAN NORTH AMERICA, INC.
Remove rear sun gear assembly from mid sun gear assembly.

Fig 5: Removing Rear Sun Gear Assembly From Mid Sun Gear Assembly
Courtesy of NISSAN NORTH AMERICA, INC.
Remove snap ring from rear sun gear using a flat-bladed screwdriver.
CAUTION:
- Be careful not to scratch rear sun gear and 2nd one-way clutch.
- Be careful not to damage snap ring.
Fig 6: Removing Snap Ring From Rear Sun Gear Using Flat-Bladed Screwdriver
Courtesy of NISSAN NORTH AMERICA, INC.
Remove 2nd one-way clutch from rear sun gear.

Fig 7: Removing 2nd One-Way Clutch From Rear Sun Gear
Courtesy of NISSAN NORTH AMERICA, INC.
Remove seal rings from mid sun gear.

Fig 8: Removing Seal Rings From Mid Sun Gear
Courtesy of NISSAN NORTH AMERICA, INC.
