Mid Sun Gear, Rear Sun Gear, High And Low Reverse Clutch Hub: Assembly

WARNING: This page is about a different car, the 2013 Infiniti FX50. However, it is still accessible from the selected car via links, so may be relevant.

Install seal rings to mid sun gear.

Fig 1: Identifying Seal Rings From Mid Sun Gear
Courtesy of NISSAN NORTH AMERICA, INC.
Install 2nd one-way clutch to rear sun gear.

Fig 2: Installing 2nd One-Way Clutch From Rear Sun Gear
Courtesy of NISSAN NORTH AMERICA, INC.
Install snap ring to rear sun gear using a flat-bladed screwdriver.
CAUTION:
- Be careful not to scratch rear sun gear and 2nd one-way clutch.
- Be careful not to damage snap ring.
Fig 3: Installing Snap Ring From Rear Sun Gear Using Flat-Bladed Screwdriver
Courtesy of NISSAN NORTH AMERICA, INC.
Install rear sun gear assembly to mid sun gear assembly.

Fig 4: Installing Rear Sun Gear Assembly From Mid Sun Gear Assembly
Courtesy of NISSAN NORTH AMERICA, INC.
Install needle bearing to high and low reverse clutch hub.
CAUTION: Check the direction of needle bearing. Refer to "LOCATION OF NEEDLE BEARINGS AND BEARING RACES ".

Fig 5: Installing Needle Bearing From High And Low Reverse Clutch Hub
Courtesy of NISSAN NORTH AMERICA, INC.
Install high and low reverse clutch hub to mid sun gear assembly.

Fig 6: Installing High And Low Reverse Clutch Hub From Mid Sun Gear Assembly
Courtesy of NISSAN NORTH AMERICA, INC.
Install snap ring to mid sun gear assembly using pair of snap ring pliers.
CAUTION: Be careful not to expand snap ring excessively.

Fig 7: Installing Snap Ring From Mid Sun Gear Assembly Using Pair Of Snap Ring Pliers
Courtesy of NISSAN NORTH AMERICA, INC.
Check operation of 2nd one-way clutch.
1. Hold mid sun gear and turn rear sun gear.
2. Check 2nd one-way clutch for correct locking and unlocking directions.
  CAUTION: If not as shown in the figure below, check installation direction of 2nd one-way clutch.

  Fig 8: Checking Operation Of 2nd One-Way Clutch
  Courtesy of NISSAN NORTH AMERICA, INC.
Install needle bearing and bearing races to high and low reverse clutch hub.
CAUTION: Check the direction of needle bearing. Refer to "LOCATION OF NEEDLE BEARINGS AND BEARING RACES ".

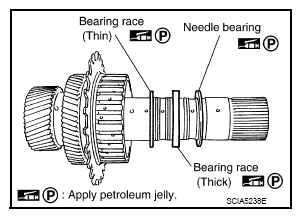

Fig 9: Locating Needle Bearing And Bearing Races (Thin And Thick)
Courtesy of NISSAN NORTH AMERICA, INC.
