Front Carrier, Input Clutch, Rear Internal Gear: Disassembly

WARNING: This page is about a different car, the 2013 Infiniti FX50. However, it is still accessible from the selected car via links, so may be relevant.

Remove needle bearing (1) from front carrier assembly.

Fig 1: Locating Front Carrier Assembly Needle Bearing
Courtesy of NISSAN NORTH AMERICA, INC.
Compress snap ring (1) using flat-bladed screwdrivers (A).
CAUTION:
- Be careful not to scratch rear internal gear.
- Be careful not to damage snap ring.
Fig 2: Compressing Snap Ring Using Flat-Bladed Screwdrivers
Courtesy of NISSAN NORTH AMERICA, INC.
Remove front carrier assembly and input clutch assembly from rear internal gear.
Remove front carrier assembly from input clutch assembly.
Remove snap ring (1) from front carrier assembly.
CAUTION: Be careful not to expand snap ring excessively.

Fig 3: Locating Front Carrier Assembly Snap Ring
Courtesy of NISSAN NORTH AMERICA, INC.
Remove O-ring (1) and seal rings (2) from input clutch assembly.

Fig 4: Locating Input Clutch Assembly O-Ring And Seal Rings
Courtesy of NISSAN NORTH AMERICA, INC.
Remove needle bearing from input clutch assembly.

Fig 5: Removing Needle Bearing From Input Clutch Assembly
Courtesy of NISSAN NORTH AMERICA, INC.
Remove snap ring from input clutch drum using a flat-bladed screwdriver.
CAUTION:
- Be careful not to scratch rear input clutch drum and input clutch retaining plate.
- Be careful not to damage snap ring.
Remove input clutch component part (drive plates, driven plates, retaining plate, and dish plate) from input clutch drum.

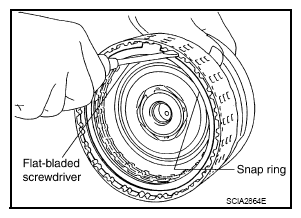

Fig 6: Removing Snap Ring From Input Clutch Drum Using Flat-Bladed Screwdriver
Courtesy of NISSAN NORTH AMERICA, INC.
