Front Carrier, Input Clutch, Rear Internal Gear: Assembly

WARNING: This page is about a different car, the 2013 Infiniti FX50. However, it is still accessible from the selected car via links, so may be relevant.

Install input clutch component part (dish plate, drive plates, driven plates, and retaining plate) to input clutch drum.

Fig 1: Identifying Clutch Component Parts
Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION: Check order of plates.
Install snap ring to input clutch drum using a flat-bladed screwdriver.
CAUTION:
- Be careful not to scratch input clutch drum and input clutch retaining plate.
- Be careful not to damage snap ring.

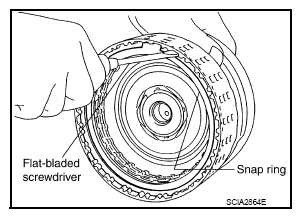

Fig 2: Installing Snap Ring To Input Clutch Drum Using Flat-Bladed Screwdriver
Courtesy of NISSAN NORTH AMERICA, INC.
Install needle bearing to input clutch assembly.
CAUTION: Check the direction of needle bearing. Refer to "LOCATION OF NEEDLE BEARINGS AND BEARING RACES ".

Fig 3: Installing Needle Bearing To Input Clutch Assembly
Courtesy of NISSAN NORTH AMERICA, INC.
Install O-ring (1) and seal rings (2) to input clutch assembly.

Fig 4: Locating Input Clutch Assembly O-Ring And Seal Rings
Courtesy of NISSAN NORTH AMERICA, INC.
Install snap ring (1) to front carrier assembly.
CAUTION: Be careful not to expand snap ring excessively.

Fig 5: Locating Front Carrier Assembly Snap Ring
Courtesy of NISSAN NORTH AMERICA, INC.
Compress snap ring (1) using flat-bladed screwdrivers (A).
CAUTION:
- Be careful not to scratch rear internal gear.
- Be careful not to damage snap ring.
Fig 6: Compressing Snap Ring Using Flat-Bladed Screwdrivers
Courtesy of NISSAN NORTH AMERICA, INC.
Install front carrier assembly and input clutch assembly to rear internal gear.
Install needle bearing (1) to front carrier assembly.
CAUTION: Check the direction of needle bearing. Refer to "LOCATION OF NEEDLE BEARINGS AND BEARING RACES ".

Fig 7: Locating Front Carrier Assembly Needle Bearing
Courtesy of NISSAN NORTH AMERICA, INC.
