Component Parts Location

WARNING: This page is about a different car, the 2013 Infiniti FX50. However, it is still accessible from the selected car via links, so may be relevant.

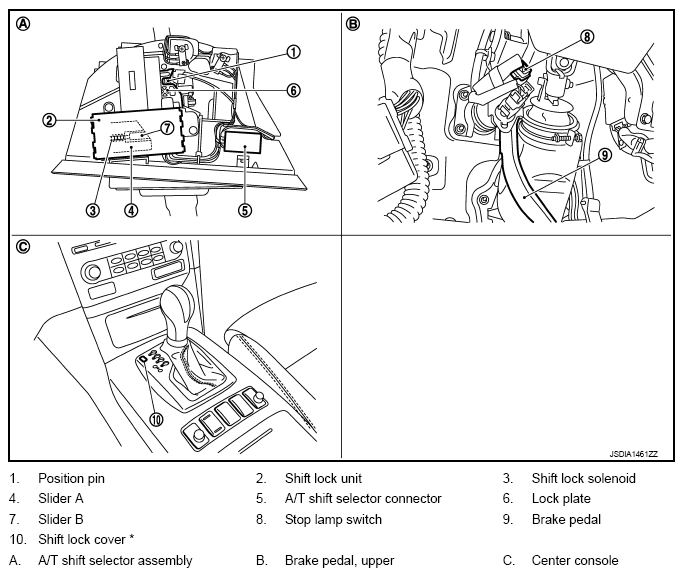

Fig 1: Shift Lock System Components Location

Courtesy of NISSAN NORTH AMERICA, INC.

*: Shift lock release button becomes operative by removing shift lock cover.
