Symptom Table 1

WARNING: This page is about a different car, the 2013 Infiniti FX50. However, it is still accessible from the selected car via links, so may be relevant.

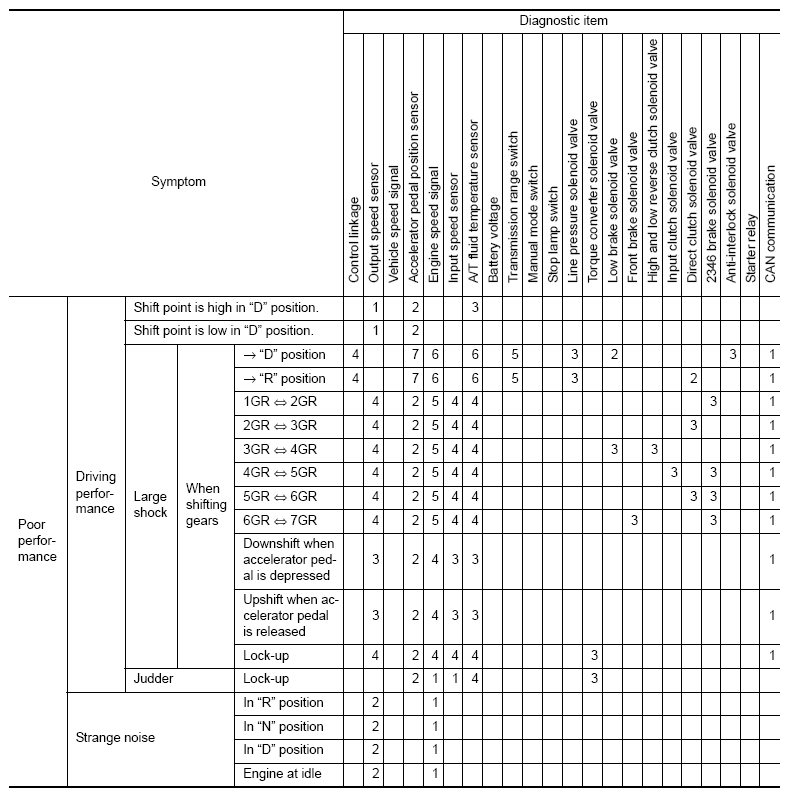

Fig 1: Diagnostics Item Symptoms Chart 1 (1 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

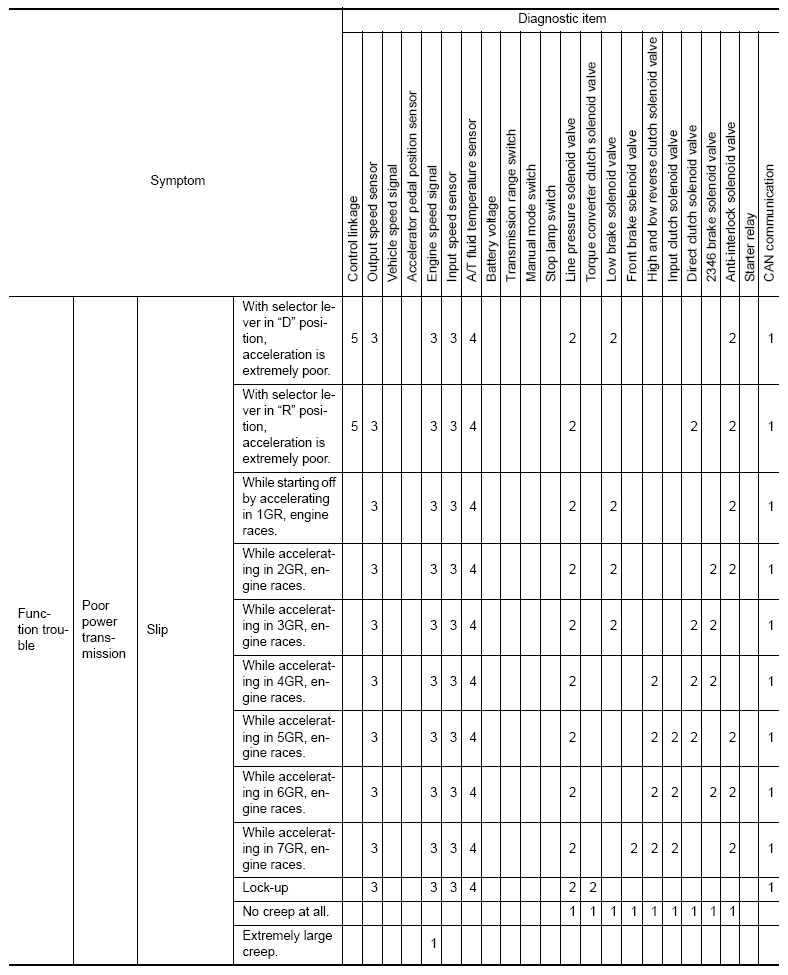

Fig 2: Diagnostics Item Symptoms Chart 1 (2 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

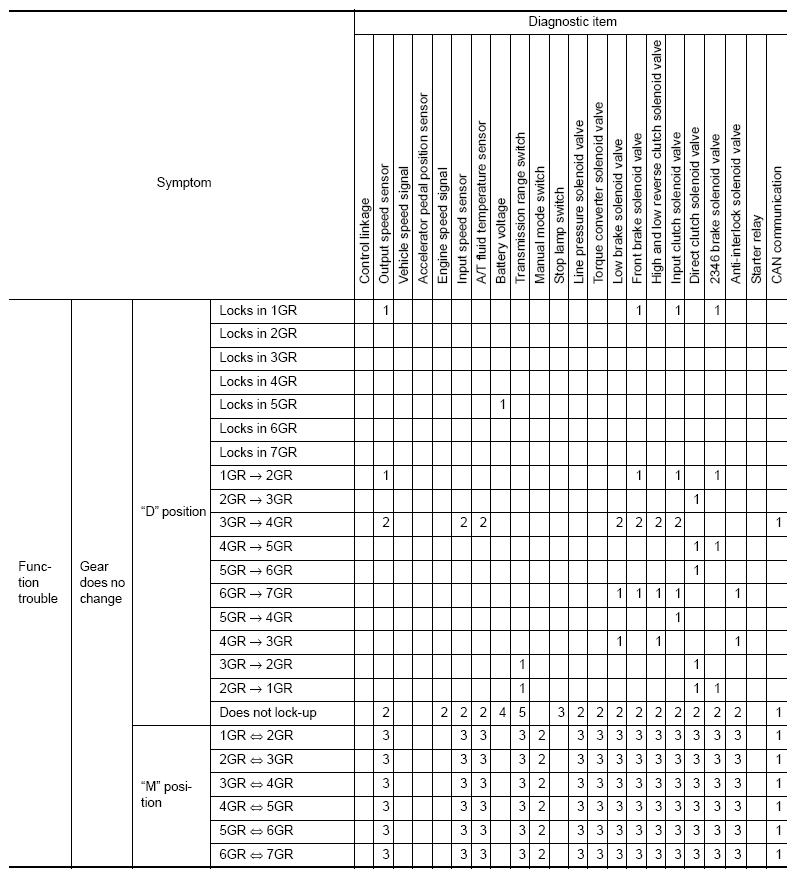

Fig 3: Diagnostics Item Symptoms Chart 1 (3 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

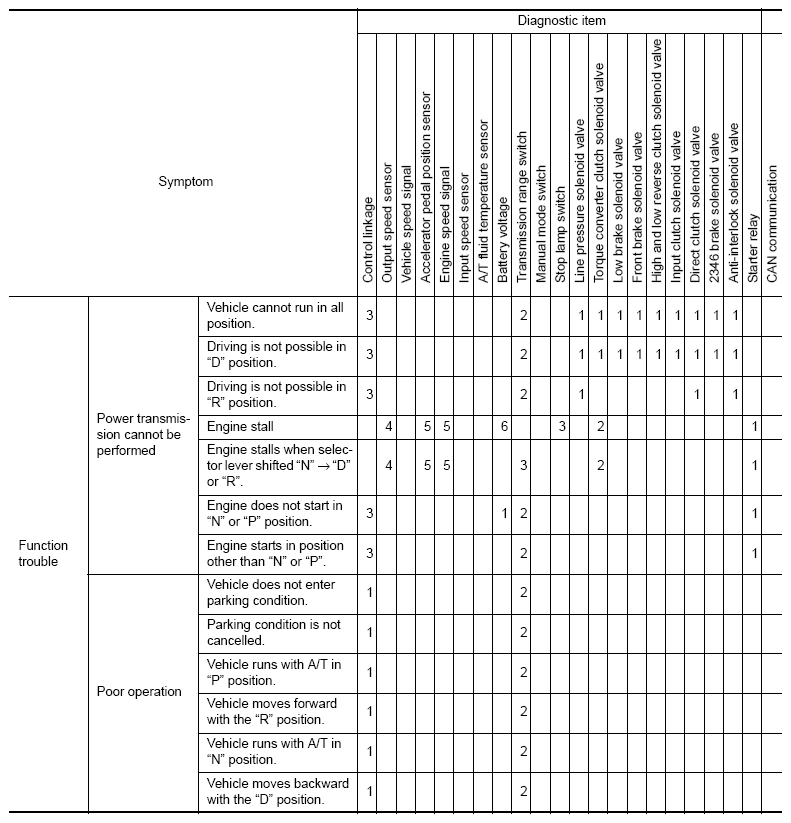

Fig 4: Diagnostics Item Symptoms Chart 1 (4 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

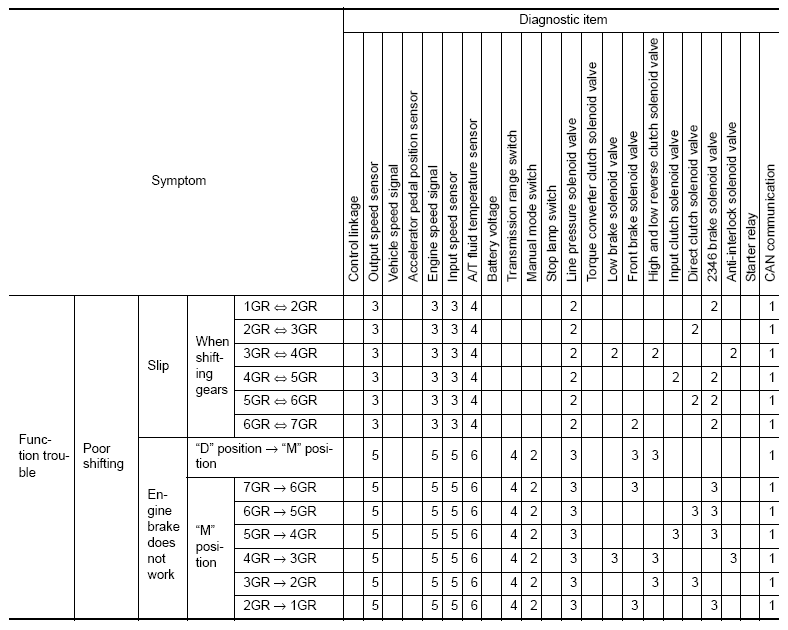

Fig 5: Diagnostics Item Symptoms Chart 1 (5 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.
