Removal and Installation: Removal

WARNING: This page is about a different car, the 2013 Infiniti FX50. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove transfer assembly from A/T assembly. Refer to "VK50VE: EXPLODED VIEW ".
  2. Remove rear oil seal (1) with a flat-bladed screwdriver (A).
    CAUTION: Never scratch adapter case assembly.

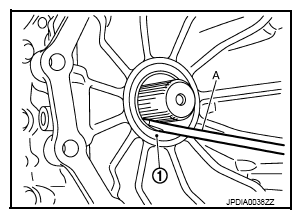

    Fig 1: Removing Rear Oil Seal Using Flat-Bladed Screwdriver
    G09002237Courtesy of NISSAN NORTH AMERICA, INC.
