Removal and Installation: Removal

WARNING: This page is about a different car, the 2013 Infiniti FX50. However, it is still accessible from the selected car via links, so may be relevant.
  1. Shift the selector lever to "P" position.
  2. Remove control rod from A/T shift selector.
  3. Shift the selector lever to "N" position.
  4. Remove knob cover (A) below selector lever downward.

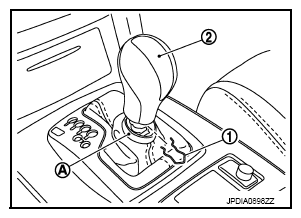

    Fig 1: Locating Lock Pin, Selector Lever Knob And Knob Cover
    G09002216Courtesy of NISSAN NORTH AMERICA, INC.
  5. Pull lock pin (1) out of selector lever knob (2).
  6. Remove selector lever knob.
  7. Remove center console assembly. Refer to "EXPLODED VIEW ".
    CAUTION: When disconnecting selector lever position indicator connector from shift position switch, never twist or apply an excessive load to the connector.
  8. Remove the rear ventilator duct 1. Refer to "EXPLODED VIEW ".
  9. Disconnect A/T shift selector connector.
  10. Remove harness clips from A/T shift selector assembly.
  11. Shift the selector lever to "P" position.
  12. Remove A/T shift selector assembly mounting bolts.
  13. Slightly lift the A/T shift selector assembly (1) and slide it rightward. Then pull it out in the diagonally right direction.

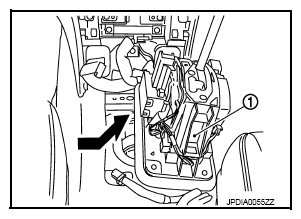

    Fig 2: Removing A/T Shift Selector Assembly
    G09002217Courtesy of NISSAN NORTH AMERICA, INC.
  14. Remove adapter from A/T shift selector assembly.
  15. Remove dust cover and dust cover plate from A/T shift selector assembly.
  16. Remove dust cover from dust cover plate.
  17. Remove shift lock unit from A/T shift selector assembly.
  18. Remove brackets from vehicle floor panel.
  19. Remove selector lever position indicator from console finisher assembly:
    1. Remove indicator assembly from console finisher assembly. Refer to "EXPLODED VIEW ".
    2. Remove insert finisher from indicator assembly.
    3. Remove selector lever position indicator.
