Removal and Installation: Installation: Thermostat

WARNING: This page is about a different car, the 2013 Infiniti FX50. However, it is still accessible from the selected car via links, so may be relevant.

Install thermostat with the whole circumference of each flange part (A) fit securely inside rubber ring (1).

Fig 1: Locating Thermostat Rubber Ring
Courtesy of NISSAN NORTH AMERICA, INC.

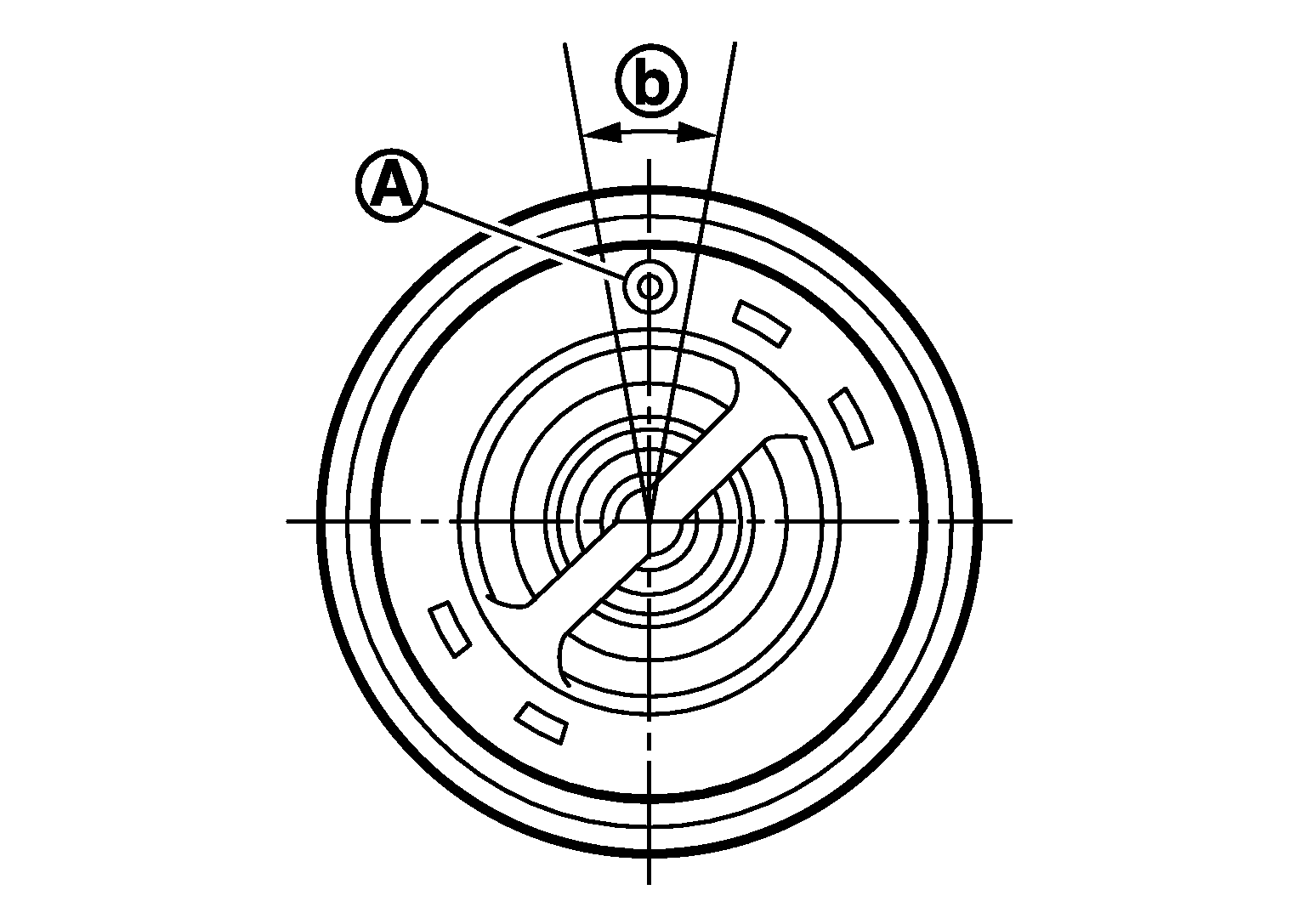

Install thermostat with jiggle valve (A) facing upwards. The position deviation may be within the range of 20 degrees (b).

Fig 2: Locating Thermostat With Jiggle Valve Positions

Courtesy of NISSAN NORTH AMERICA, INC.
