Engine Coolant: Inspection: Leakage

WARNING: This page is about a different car, the 2013 Infiniti FX50. However, it is still accessible from the selected car via links, so may be relevant.

To check for leakage, apply pressure to the cooling system with the radiator cap tester and radiator cap tester adapter (commercial service tool) (A).
Testing pressure: Refer to "RADIATOR ".

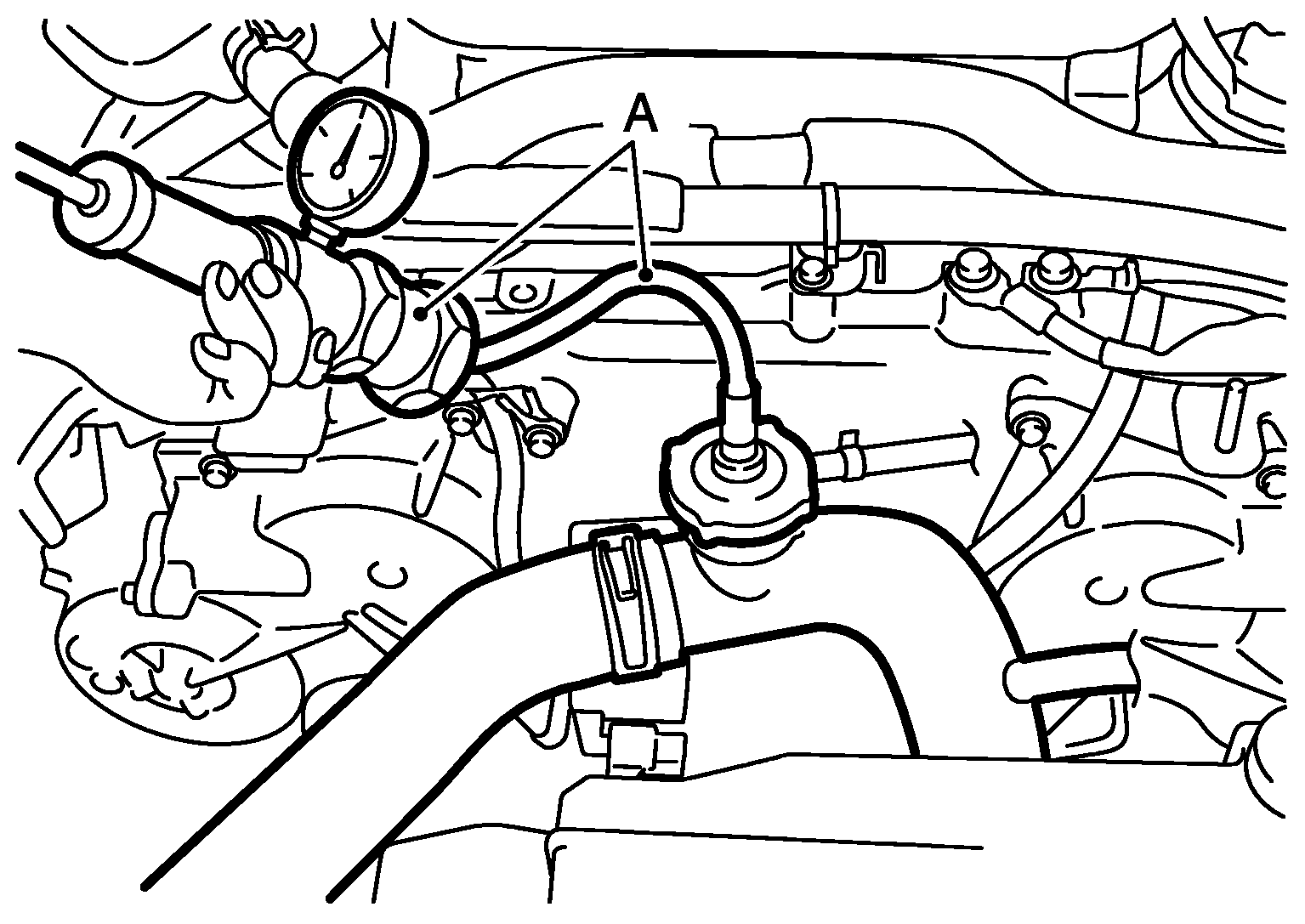

Fig 1: Checking Cooling System Leakage Using Adapter
Courtesy of NISSAN NORTH AMERICA, INC.

WARNING: Never remove radiator cap when engine is hot. Serious burns could occur from high-pressure engine coolant escaping from water inlet.

CAUTION: Higher test pressure than specified may cause radiator damage.

NOTE: In a case that engine coolant decreases, fill radiator with engine coolant.
If anything is found, repair or replace damaged parts.
