When Cylinder Block Is Reused

WARNING: This page is about a different car, the 2013 Infiniti FX50. However, it is still accessible from the selected car via links, so may be relevant.
  1. Measure the cylinder bore inner diameter. Refer to "CYLINDER BLOCK ".
  2. Determine the bore grade by comparing the measurement with the values under the cylinder bore inner diameter of the "PISTON SELECTION TABLE ".

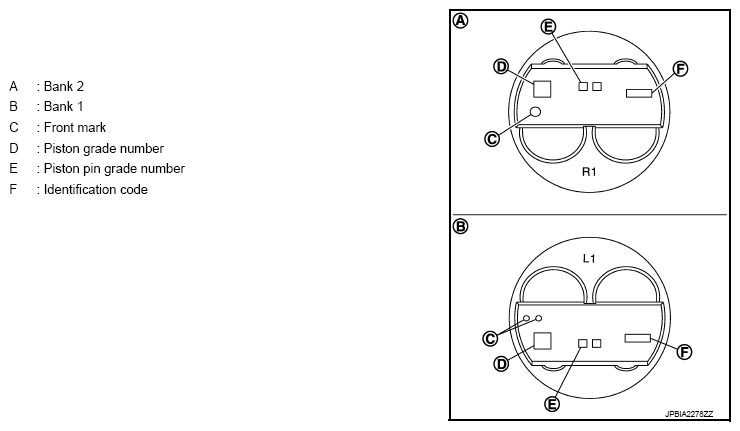

    Fig 1: Locating Piston Grade Number, Piston Pin Grade Number, Identification Code And Front Mark
    G09000418Courtesy of NISSAN NORTH AMERICA, INC.
  3. Select piston of the same grade.
