MAIN BEARING SELECTION TABLE (No. 1 and 5 Journal)

WARNING: This page is about a different car, the 2013 Infiniti FX50. However, it is still accessible from the selected car via links, so may be relevant.

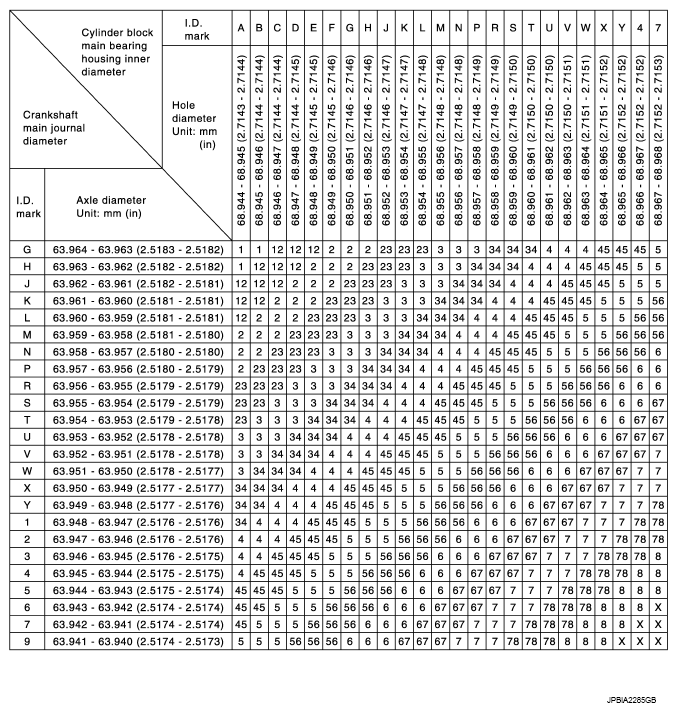

Fig 1: Main Bearing Selection Chart (No. 1 And 5 Journal)
G09000425Courtesy of NISSAN NORTH AMERICA, INC.
