Disassembly and Assembly: Disassembly

WARNING: This page is about a different car, the 2013 Infiniti FX50. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove heated oxygen sensor 2.
    CAUTION: Heated oxygen sensor 2 is not reusable. Never remove heated oxygen sensor 2 unless this is required.
    • Using the heated oxygen sensor wrench [SST: KV10114400 (J-38365)] (A), remove heated oxygen sensor 2 (1).
      NOTE:
      • The heated oxygen sensor 2 is removable under vehicle-mounted condition.
      • The figure shows an example of bank 1.

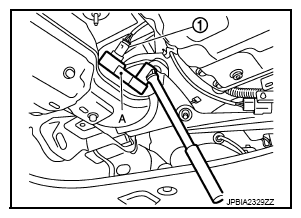

      Fig 1: Removing Heated Oxygen Sensor 2 Using Heated Oxygen Sensor Wrench
      G09000242Courtesy of NISSAN NORTH AMERICA, INC.
  2. Remove three way catalyst (bank 1 and bank 2).
  3. Remove air fuel ratio sensor 1 as per the following:
    CAUTION: Air fuel ratio sensor 1 is not reusable. Never remove air fuel ratio sensor 1 unless this is required.
    • Using the heated oxygen sensor wrench [SST: KV10114400 (J-38365)], remove air fuel ratio sensor 1.
      NOTE: The air fuel ration sensor 1 is removable under vehicle-mounted condition.
  4. Remove exhaust manifold.
    • Loosen nuts in the reverse order of figure to remove exhaust manifold with power tool.

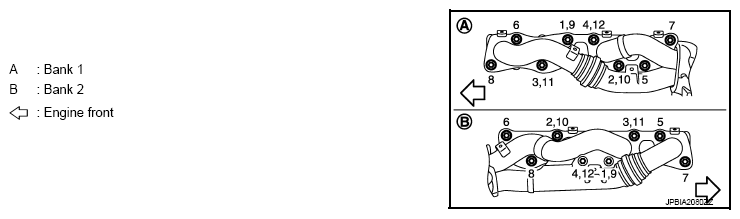

      Fig 2: Exhaust Manifold Mounting Nuts Tightening Sequence
      G09000243Courtesy of NISSAN NORTH AMERICA, INC.
      NOTE: Disregard No. 9 to No. 12 when loosening.
  5. Remove exhaust manifold gaskets.
    CAUTION: Cover engine openings to avoid entry of foreign materials.
