Crankshaft RUNOUT

WARNING: This page is about a different car, the 2013 Infiniti FX50. However, it is still accessible from the selected car via links, so may be relevant.

Place V-block on precise flat table, and support the journals on both ends of crankshaft.
Place a dial indicator straight up on the No. 3 journal.
While rotating crankshaft, read the movement of the pointer on a dial indicator. (Total indicator reading)
Standard and limit: Refer to "CYLINDER BLOCK ".

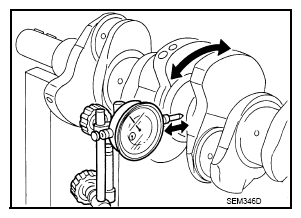

Fig 1: Measuring Crankshaft Runout Using Dial Indicator
Courtesy of NISSAN NORTH AMERICA, INC.
If it exceeds the limit, replace crankshaft.
