Connecting Rod Bend And Torsion
WARNING: This page is about a different car, the 2013 Infiniti FX50. However, it is still accessible from the selected car via links, so may be relevant.

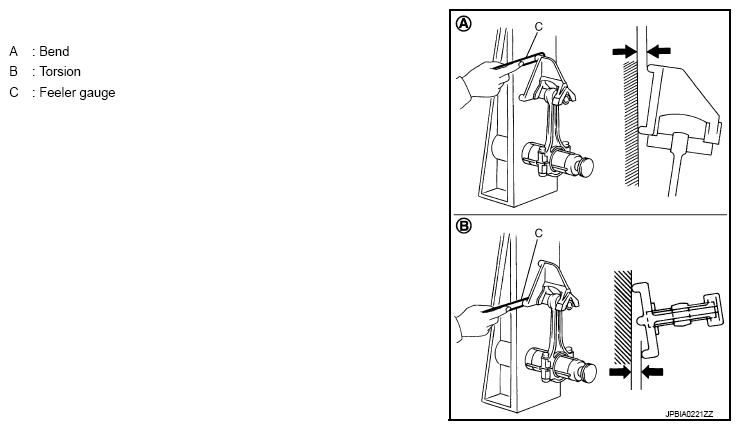

- Check with a connecting rod aligner.
Courtesy of NISSAN NORTH AMERICA, INC.
Bend limit: Refer to "CYLINDER BLOCK ".
Torsion limit
- If it exceeds the limit, replace connecting rod assembly.
