Disassembly and Assembly: Assembly

WARNING: This page is about a different car, the 2013 Infiniti FX50. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Do not reuse washers.
  1. Install valve lifter.
    • Install it in the original position.
  2. Install camshaft (EXH).
    • Distinction between camshaft (EXH) is performed with the identification mark.
      Fig 1: Locating Camshaft (EXH) Identification Rib And Paint Mark
      G09000300Courtesy of NISSAN NORTH AMERICA, INC.
      Bank Paint marks Identification rib (E)
      M1 (C) M2 (D)
      Bank 2 (A) No Green Yes
      Bank 1 (B) No Green No
  3. Install VVEL ladder assembly as per the following:
    1. Apply a continuous bead of liquid gasket with tube presser (commercial service tool) to the cylinder head as shown in the figure below.

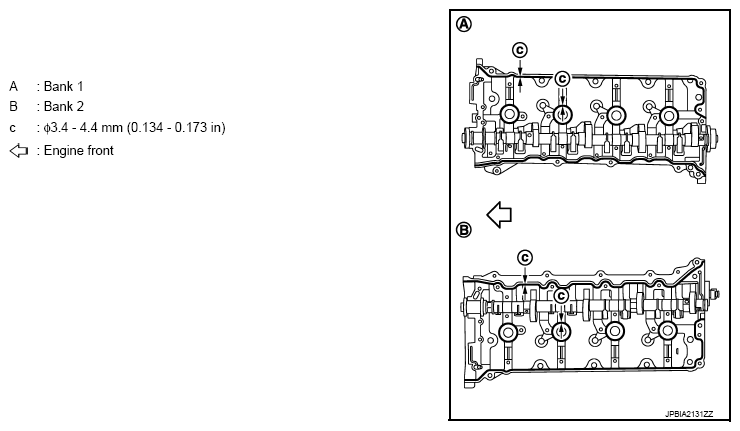

      Fig 2: Locating Liquid Gasket Application Area On Cylinder Head
      G09000301Courtesy of NISSAN NORTH AMERICA, INC.

      Use Genuine RTV Silicone Sealant or an equivalent. Refer to  "RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS ".

    2. Tighten mounting bolts in the following step, in numerical order as shown below.

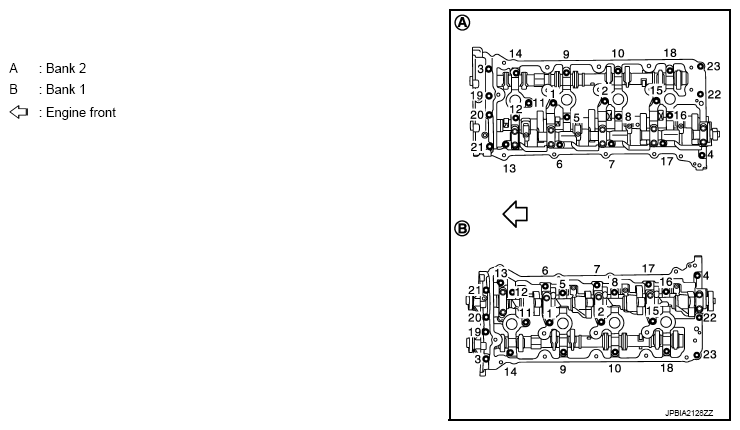

      Fig 3: VVEL Ladder Assembly Mounting Bolts Tightening Sequence
      G09000302Courtesy of NISSAN NORTH AMERICA, INC.
      CAUTION: Do not reuse washers.
      1. Tighten bolts in numerical order as shown.

        Torque Value: 1.96 N.m (0.20 kg-m, 1 ft-lb)

      2. ii. Tighten bolts in numerical order as shown.

        Torque Value: 5.88 N.m (0.60 kg-m, 4 ft-lb)

      3. iii. Tighten bolts in numerical order as shown.

        Torque Value: 10.4 N.m (1.1 kg-m, 8 ft-lb)

  4. Install camshaft sprockets and timing chains. Refer to "EXPLODED VIEW ".
  5. Install actuator bracket (rear) as per the following:
    1. Refer to the figure to replace new dowel pins (2), if removed.
      Fig 4: Locating Actuator Bracket, VVEL Ladder Assembly And Dowel Pins
      G09000303Courtesy of NISSAN NORTH AMERICA, INC.
    2. Apply a continuous bead of liquid gasket with tube presser (commercial service tool) to the actuator bracket (rear) as shown in the figure below.
      Fig 5: Locating Liquid Gasket Application Area On Actuator Bracket (Rear)
      G09000304Courtesy of NISSAN NORTH AMERICA, INC.

      Use Genuine RTV Silicone Sealant or an equivalent. Refer to  "RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS ".

      CAUTION: Never apply gasket to the oil passage.
    3. Tighten mounting bolts in the following steps, in numerical order as shown below.

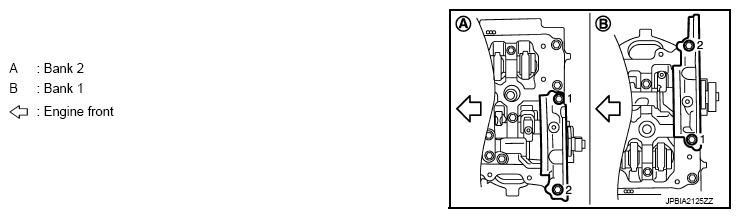

      Fig 6: Actuator Bracket (Rear) Mounting Bolts Tightening Sequence
      G09000305Courtesy of NISSAN NORTH AMERICA, INC.
      CAUTION: Do not reuse washers.
      1. Tighten bolts in numerical order as shown.

        Torque Value: 1.96 N.m (0.20 kg-m, 1 ft-lb)

      2. ii. Tighten bolts in numerical order as shown.

        Torque Value: 5.88 N.m (0.60 kg-m, 4 ft-lb)

      3. iii. Tighten bolts in numerical order as shown.

        Torque Value: 31.4 N.m (3.2 kg-m, 23 ft-lb)

  6. Install new VVEL actuator sub assembly as per the following:
    CAUTION: Regarding replacement, because VVEL actuator sub assembly and VVEL control shaft position sensor are controlled on a one-on-one basis, replace them as a set.
    NOTE:
    • VVEL actuator arm (B) is factory-fixed at 10 degrees from the small lift with a holding jig (A).
    • The holding jig is supplied in the new VVEL actuator sub assembly.

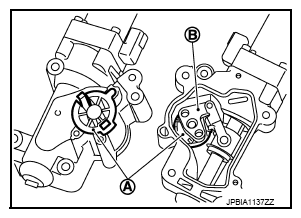

    Fig 7: Locating VVEL Actuator Arm And Holding Jig
    G09000306Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:
    • Never disassemble VVEL actuator sub assembly. [Never loosen actuator motor mounting bolts (A) shown in the figure below]
    • Never impact VVEL actuator sub assembly.
    Fig 8: Locating Actuator Motor Mounting Bolts (Never Loosen)
    G09000307Courtesy of NISSAN NORTH AMERICA, INC.
    1. Move control shaft to the position of small lift stopper.
      • The position where a part of the stopper of control shaft contacts VVEL ladder bracket.

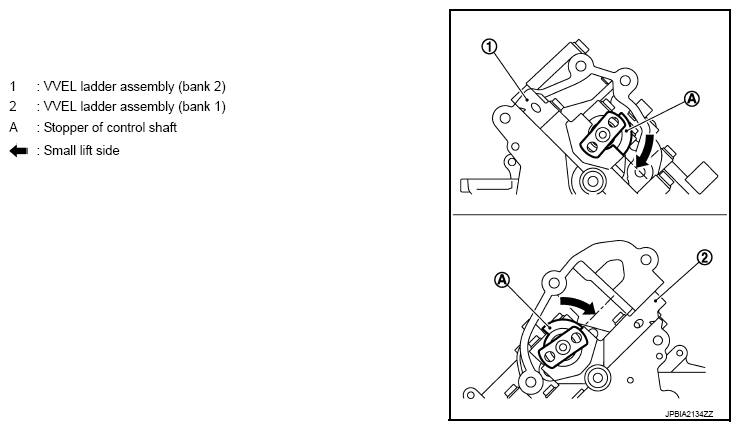

      Fig 9: Rotating Control Shaft To Position Of Small Lift Stopper
      G09000308Courtesy of NISSAN NORTH AMERICA, INC.
      CAUTION: Be careful not to damage the stopper surface.
      • If control shaft cannot be moved, set crankshaft in position referring to the information below. (To displace cam nose)

        Bank 1: Turn 360 degrees from No. 1 cylinder at TDC

        Bank 2: No. 1 cylinder at TDC

    2. Hold two flat areas of control shaft with a wrench, and rotate the control shaft (10 degrees from the stopper) to the large lift side. (This is for aligning the bolt hole of control shaft and the hole of VVEL actuator arm.)

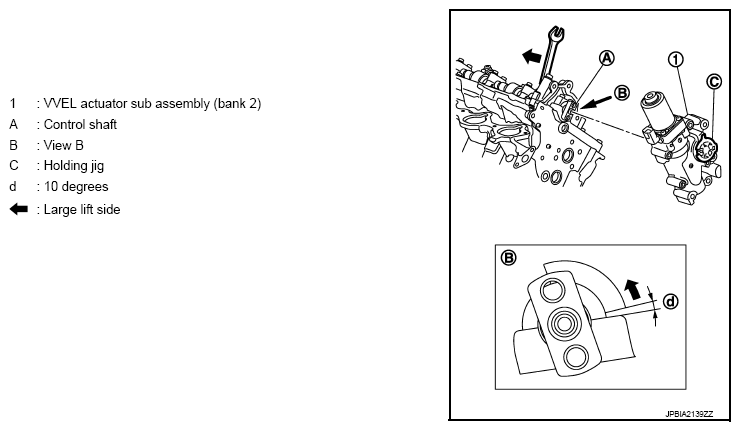

      Fig 10: Rotating Control Shaft Using Wrench
      G09000309Courtesy of NISSAN NORTH AMERICA, INC.
      NOTE: The figure shows an example of bank 2.
    3. Apply a continuous bead of liquid gasket with tube presser (commercial service tool) to the VVEL actuator sub assembly as shown in the figure below.

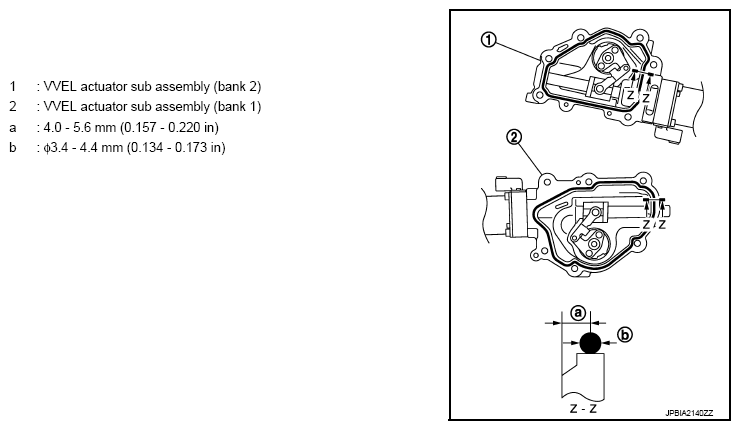

      Fig 11: Locating Liquid Gasket Application Area On VVEL Actuator Sub Assembly
      G09000310Courtesy of NISSAN NORTH AMERICA, INC.

      Use Genuine RTV Silicone Sealant or an equivalent. Refer to  "RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS ".

      CAUTION: Never apply gasket to the oil passage.
    4. Install new VVEL actuator sub assembly.
      • Tighten mounting bolts in the following step, in numerical order as shown below.

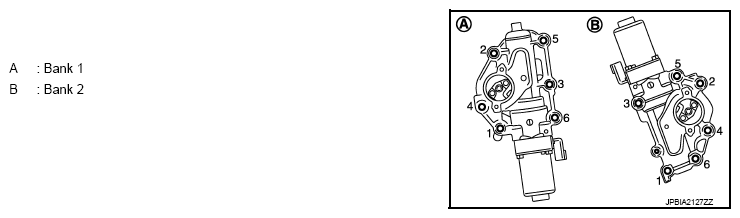

      Fig 12: VVEL Actuator Sub Assembly Mounting Bolts Tightening Sequence
      G09000311Courtesy of NISSAN NORTH AMERICA, INC.
      CAUTION:
      • When installing, be careful with VVEL actuator sub assembly (bank 1) mounting bolt No. 4 because its length is different.
      • Be sure to check that the VVEL actuator sub assembly is in contact with the cylinder head before tightening the mounting bolts.
    5. Remove holding jig.
    6. Check that VVEL actuator arm bolt hole is aligned with control shaft tapped hole. If it is not aligned, turn control shaft for alignment.
      CAUTION: Never give an impact to the magnet part. (A)
      Fig 13: Locating VVEL Actuator Sub Assembly Magnet Part
      G09000312Courtesy of NISSAN NORTH AMERICA, INC.
    7. Fix two flat areas (C) of control shaft with a wrench to tighten mounting bolts of control shaft.
      CAUTION:
      • During the operation, never allow a wrench to interfere with other parts.
      • Fix control shaft to prevent the interference of the stopper surface.

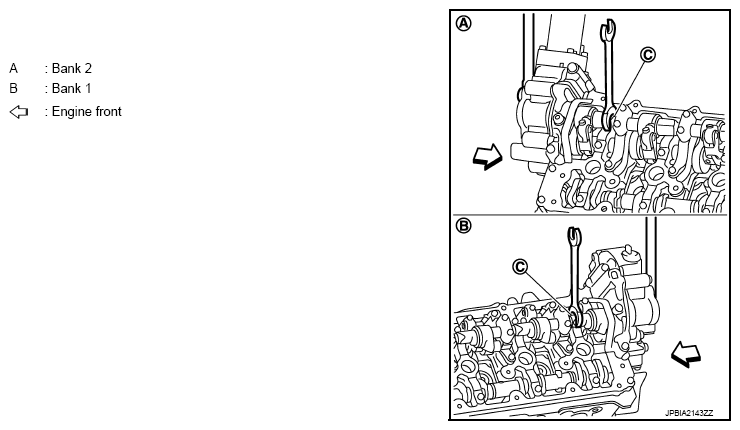

      Fig 14: Tightening Control Shaft Mounting Bolts Using Wrench
      G09000313Courtesy of NISSAN NORTH AMERICA, INC.
  7. Install new VVEL control shaft position sensor as per the following:
    CAUTION: Regarding replacement, because VVEL actuator sub assembly and VVEL control shaft position sensor are controlled on a one-on-one basis, replace them as a set.
    1. Apply engine oil to O-ring or contact surface of O-ring.
    2. Align matching marks (B) of VVEL control shaft position sensor and upper housing.
      • Face connector toward matching mark (A).

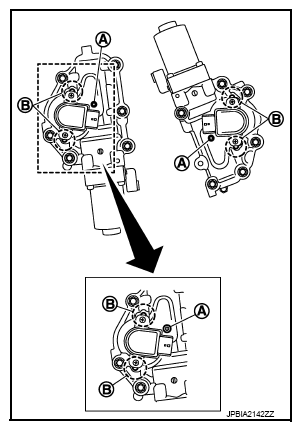

      Fig 15: Locating VVEL Control Shaft Position Sensor And Upper Housing Matching Marks
      G09000314Courtesy of NISSAN NORTH AMERICA, INC.
    3. Temporarily tighten bolt.
    4. Adjust VVEL control shaft position sensor after setting the engine assembly in the vehicle. Refer to "VVEL CONTROL SHAFT POSITION SENSOR ADJUSTMENT: DESCRIPTION ".
      CAUTION: Be sure to adjust VVEL control shaft position sensor.
    5. After adjusting VVEL control shaft position sensor, tighten bolts to the specified torque.
  8. Install actuator cover.
  9. Inspect the valve clearance. Refer to "INSPECTION ".
  10. Install in the reverse order of removal.
