Exploded View

WARNING: This page is about a different car, the 2013 Infiniti FX50. However, it is still accessible from the selected car via links, so may be relevant.

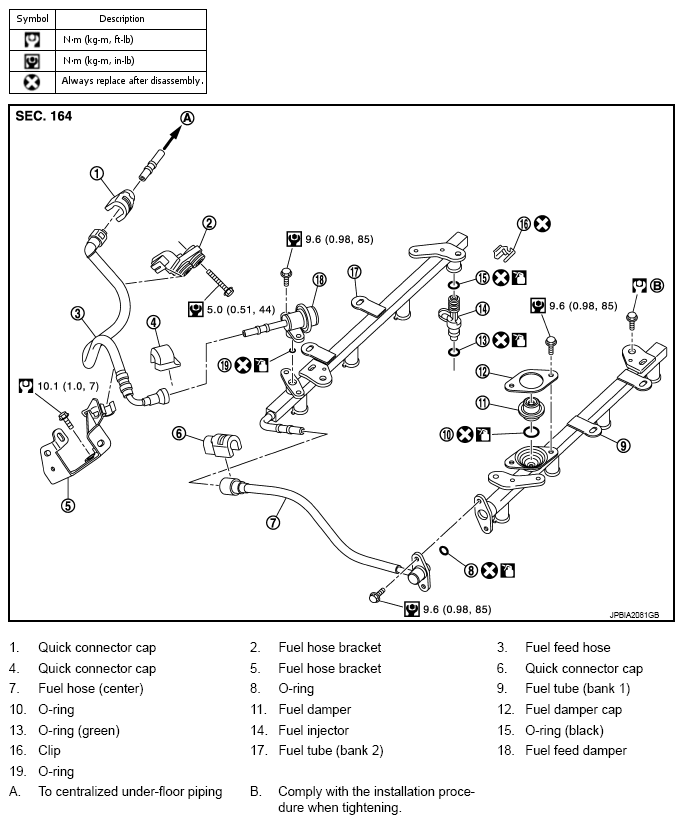

Fig 1: Exploded View Of Fuel Injector And Fuel Tube With Torque Specifications
G09000199Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "SYMBOLS " for symbols in the figure.

CAUTION: Never remove or disassemble parts unless instructed as shown in the figure below.
