Wiring Diagram - IGNITION POWER SUPPLY

For connector terminal arrangements, harness layouts, and letters in a "diamond shape" symbol (option abbreviation; if not described in wiring diagram), refer to "CONNECTOR INFORMATION ".

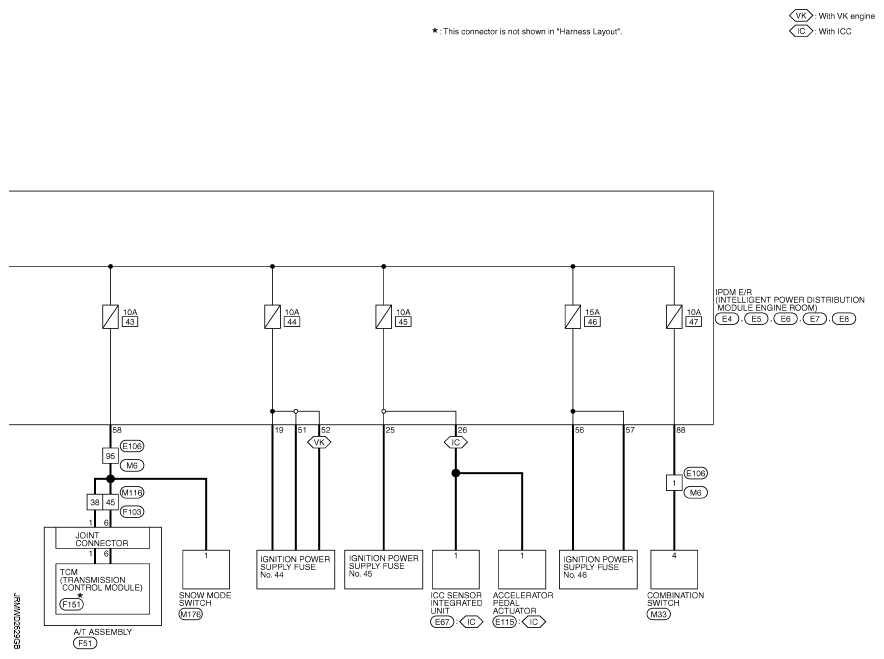

Fig 1: Ignition Power Supply Wiring Diagram (1 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

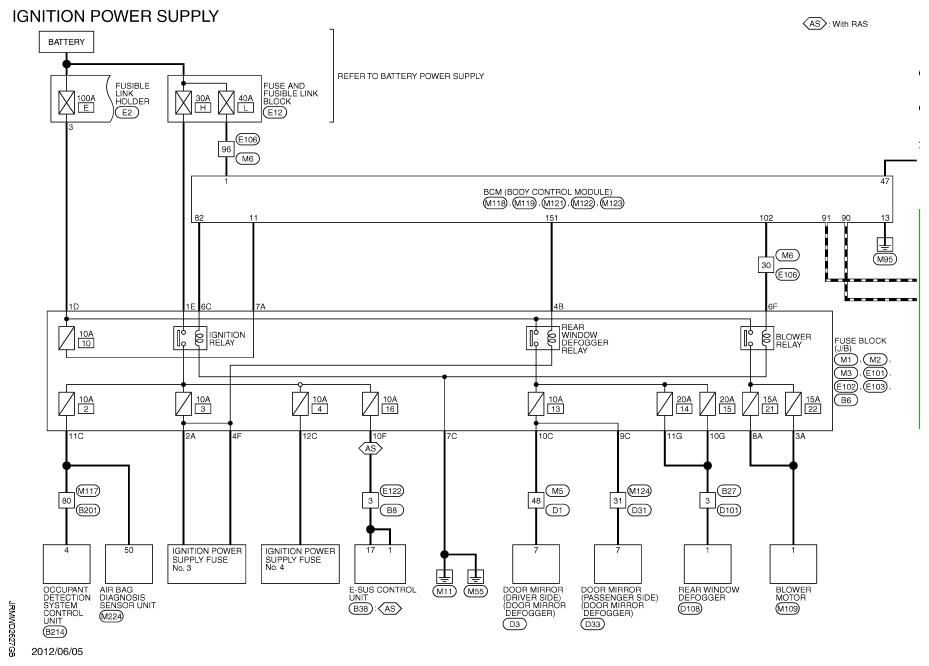

Fig 2: Ignition Power Supply Wiring Diagram (2 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

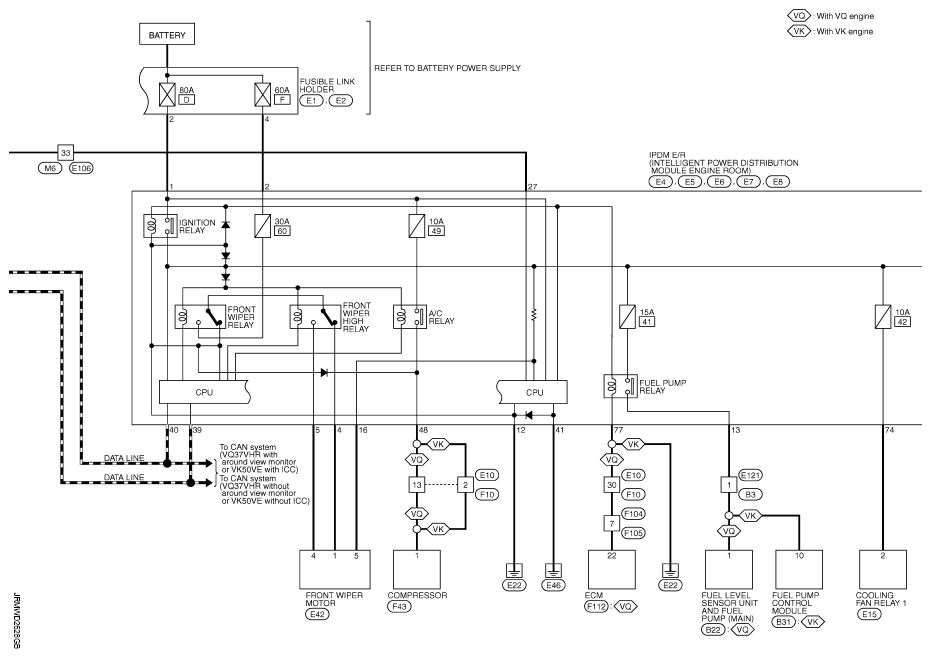

Fig 3: Ignition Power Supply Wiring Diagram (3 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.
