Wiring Diagram - BATTERY POWER SUPPLY -

For connector terminal arrangements, harness layouts, and letters in a "diamond shape" symbol (option abbreviation; if not described in wiring diagram), refer to "CONNECTOR INFORMATION ".

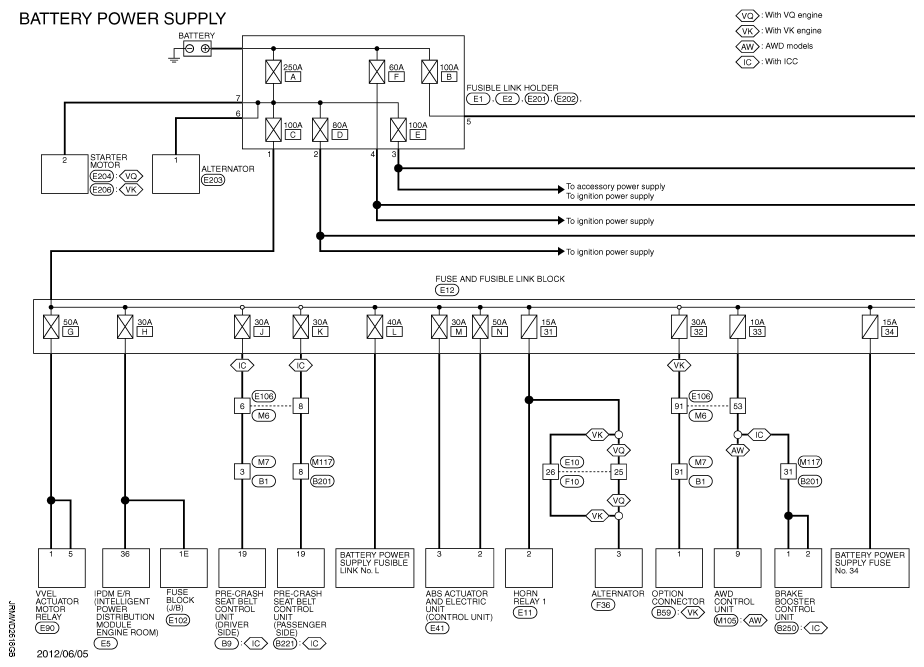

Fig 1: Battery Power Supply Wiring Diagram (1 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

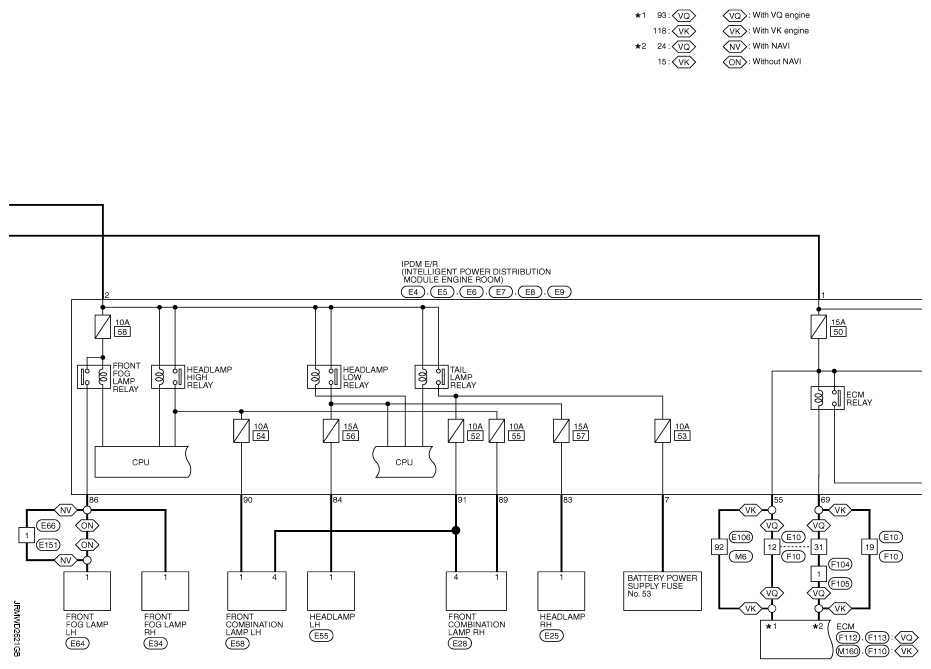

Fig 2: Battery Power Supply Wiring Diagram (2 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

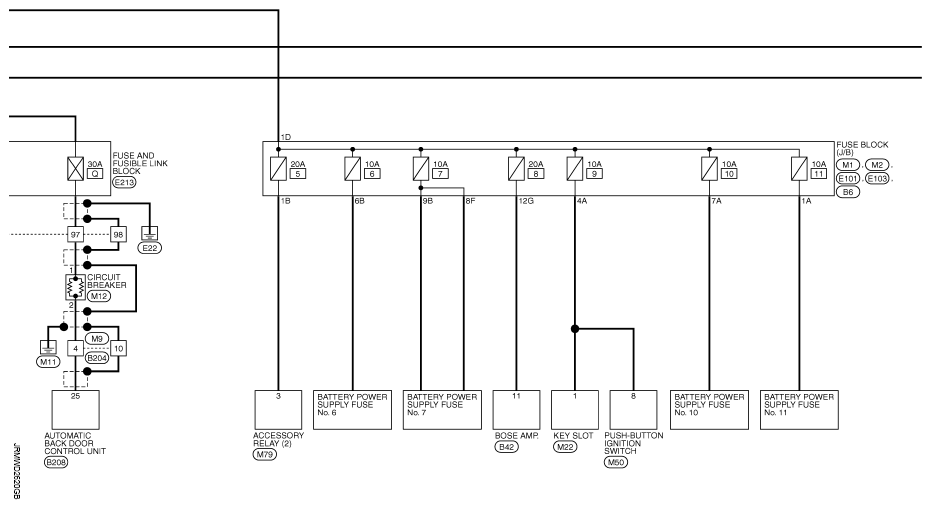

Fig 3: Battery Power Supply Wiring Diagram (3 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

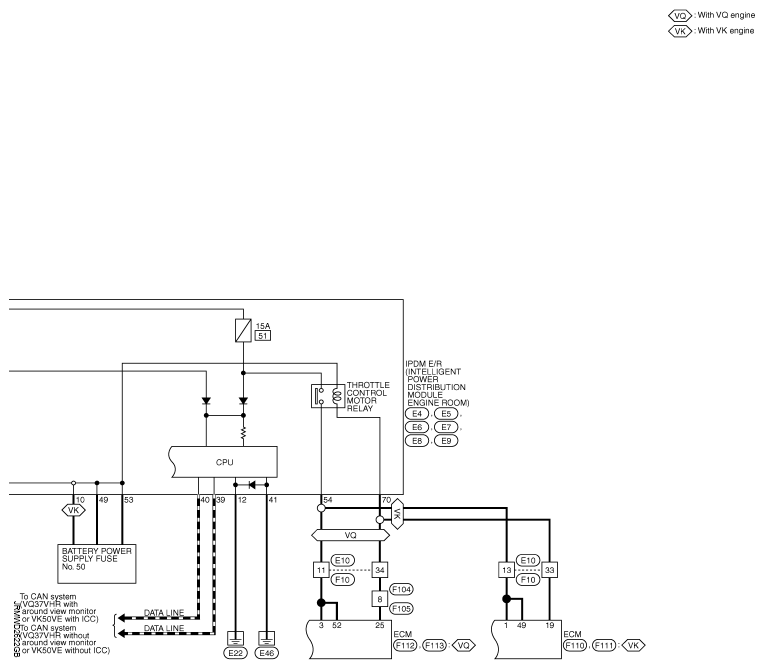

Fig 4: Battery Power Supply Wiring Diagram (4 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

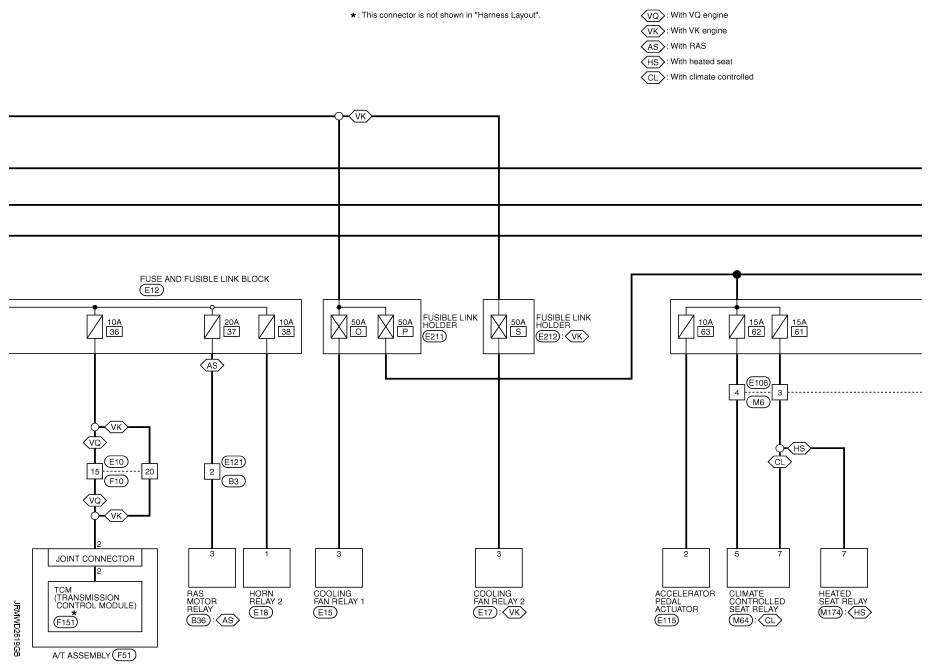

Fig 5: Battery Power Supply Wiring Diagram (5 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.
