Exploded View

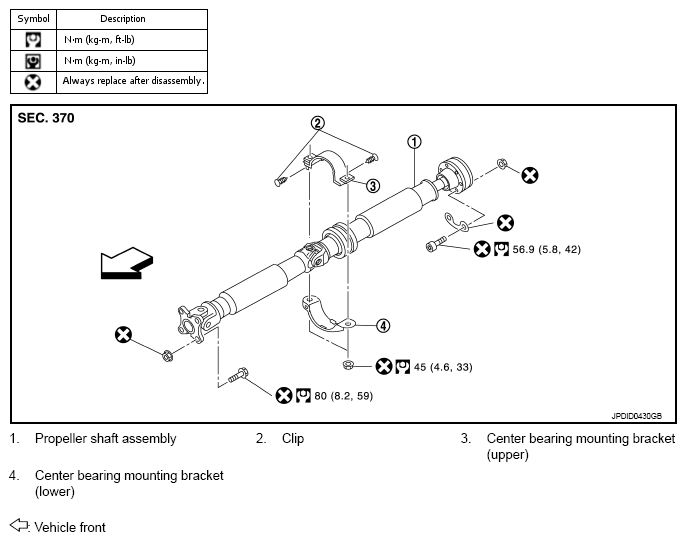

Fig 1: Exploded View Of Rear Propeller Shaft With Torque Specifications

G09002740

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
