VQ37VHR: Exploded View

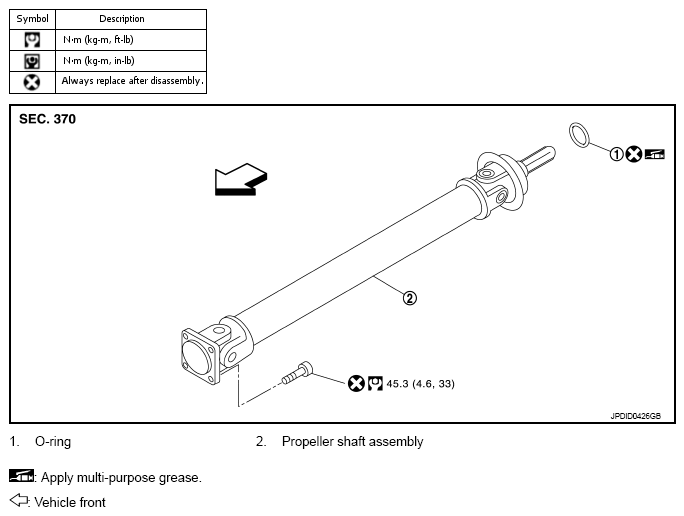

Fig 1: Exploded View Of Front Propeller Shaft With Torque Specifications

G09002702

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "SYMBOLS ". for symbols not described above.
