Disassembly and Assembly: Disassembly

Remove rear console assembly. Refer to "REMOVAL AND INSTALLATION ".
Remove rear console rear finisher.
Pull back rear console rear finisher, and then disengage metal clips.

Fig 1: Removing Rear Console Rear Finisher
Courtesy of NISSAN NORTH AMERICA, INC.
Remove rear console mask.
1. Open the rear console lid assembly.
2. Remove rear console hinge mask fixing pawls with remover tool (A).
3. Pull rear console hinge mask up and back.

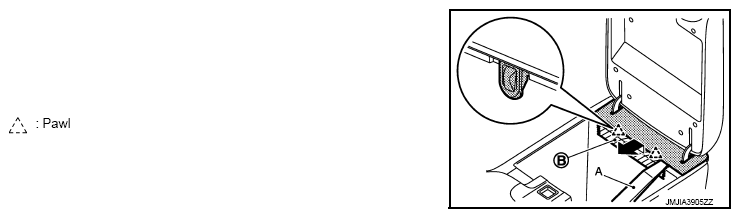

  Fig 2: Removing Rear Console Hinge Mask Fixing Pawls Using Remover Tool
  Courtesy of NISSAN NORTH AMERICA, INC.

  CAUTION: Apply protective tape (B) on the part to protect it from damage.
Remove console lid assembly mounting screws (A), and then remove console lid assembly.
Remove rear cup holder assembly.
1. Open the rear console lid assembly.
2. Pull upward to release rear cup holder assembly fixing clips and metal clips from rear console assembly.
3. Pull rear console mask up and back.

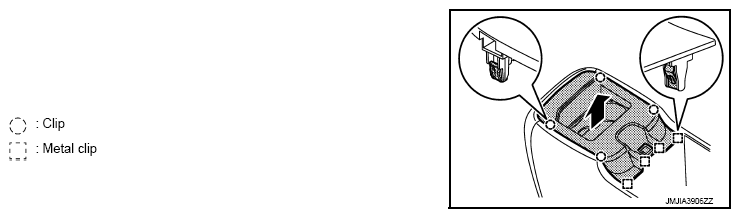

  Fig 3: Removing Rear Cup Holder Assembly
  Courtesy of NISSAN NORTH AMERICA, INC.
Remove rear console front finisher.
1. Remove screws (A).
2. Pull rear console front finisher, and then disengage metal clips.

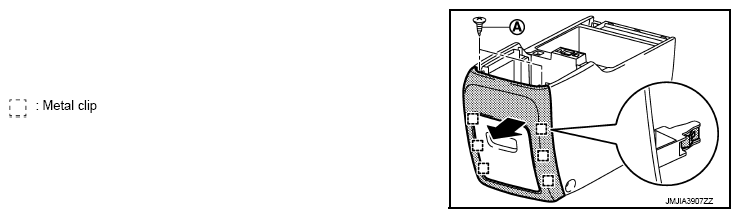

  Fig 4: Removing Rear Console Front Finisher
  Courtesy of NISSAN NORTH AMERICA, INC.
