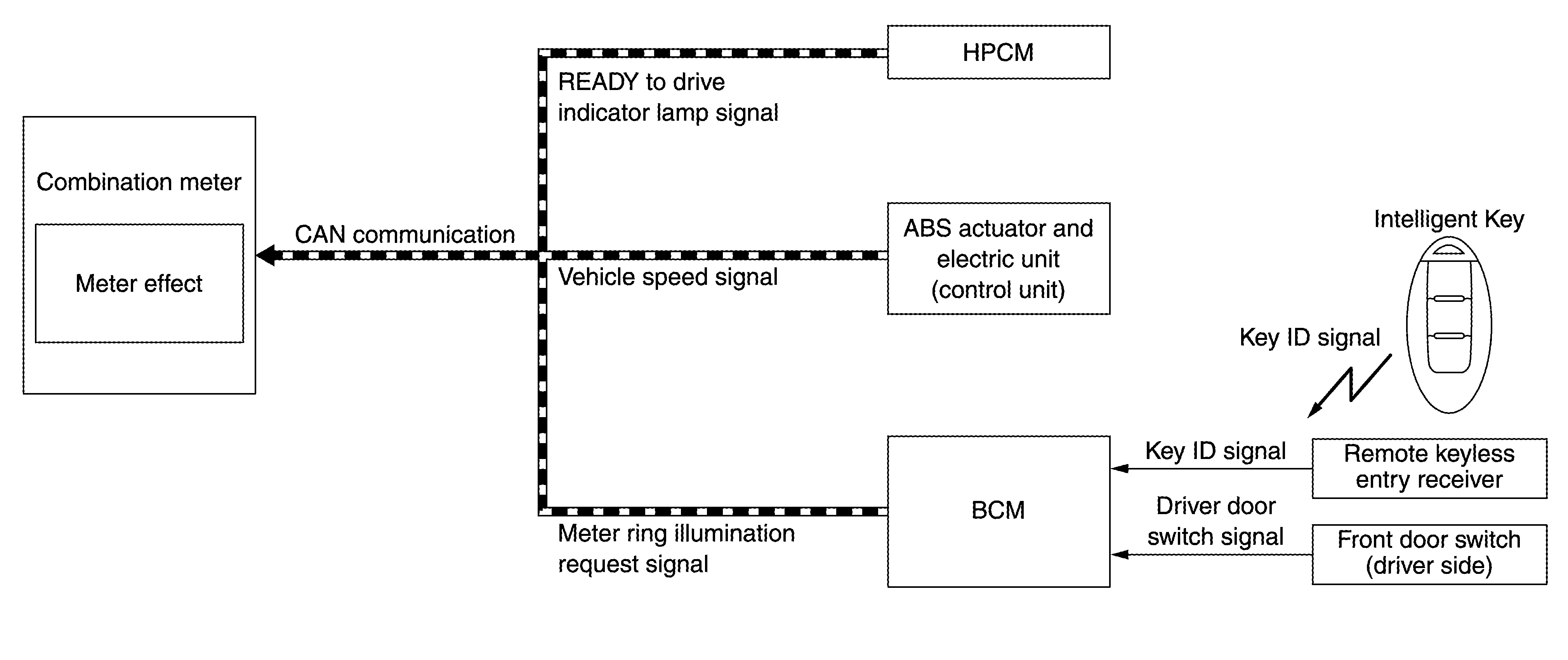

Home >> Infiniti >> 2012 >> M35h >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Meter, Warning Lamp & Indicator >> System Description >> System >> Meter Effect Function >> METER EFFECT FUNCTION: System Diagram
