Method Of Starting
- Turn ignition switch OFF.
- While pressing the trip reset switch (1), turn ignition switch ON.
Courtesy of NISSAN NORTH AMERICA, INC.
- If the diagnosis function is activated with "trip A" displayed, the mileage on "trip A" is reset to "0000.0". (The same way for "trip B".)
- Make sure that the trip meter displays "0000.0".
- Press the trip reset switch at least 3 times. (Within 7 seconds after the ignition switch is turned ON.)
- The combination meter is turned to self-diagnosis mode.
- Speedometer, tachometer, assist charge gauge, fuel gauge, and return to zero, simultaneously.
- The dot matrix dots on the information display (1) blink alternately.
Courtesy of NISSAN NORTH AMERICA, INC.
NOTE:
- Check combination meter power supply and ground circuit when the self-diagnosis mode of the combination meter does not start. Replace combination meter if power supply and ground circuit are normal.
- If any of the dots are not displayed, replace combination meter.

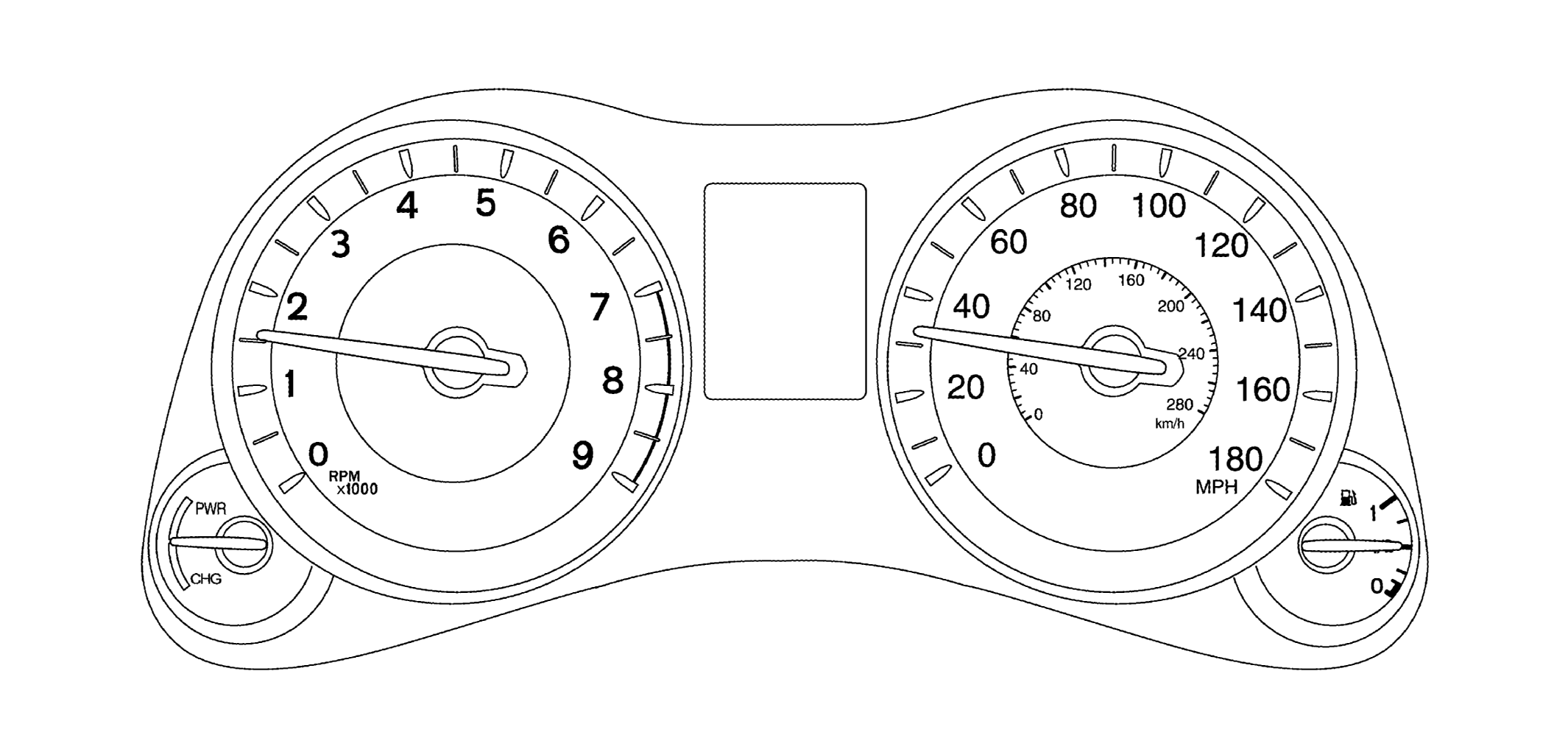

- Each meter activates by pressing the trip reset switch.
Courtesy of NISSAN NORTH AMERICA, INC.
NOTE:
- If any of the meters or gauges is not activated, replace combination meter.
- The figure is reference.
