Home
>>
Infiniti
>>
2012
>>
G37 IPL, Automatic Trans
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Gauges & Instrument Panels
>>
Instrument Panel (Coupe)
>>
Removal And Installation
>>
Instrument Panel Assembly
>>
M/T Models
>>
M/T MODELS: Exploded View
M/T MODELS: Exploded View

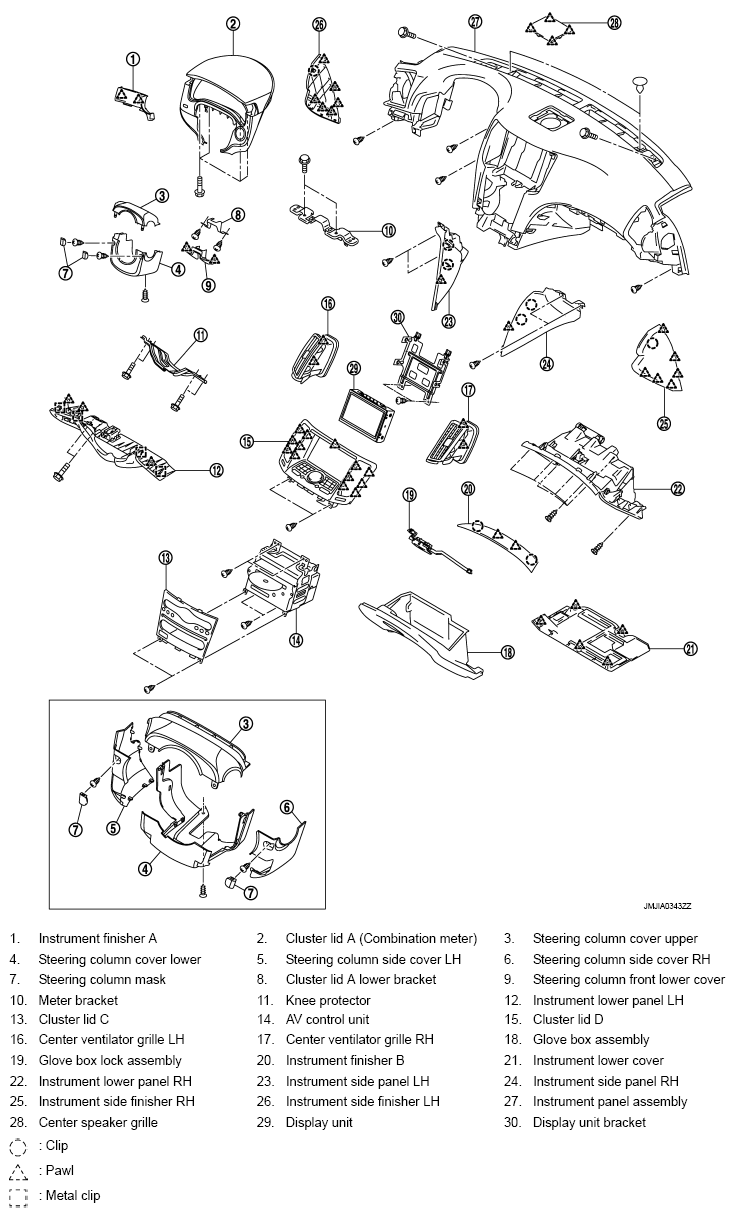

Fig 1: Exploded View Of Instrument Panel Assembly (M/T Models)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
