A/T MODELS: Exploded View

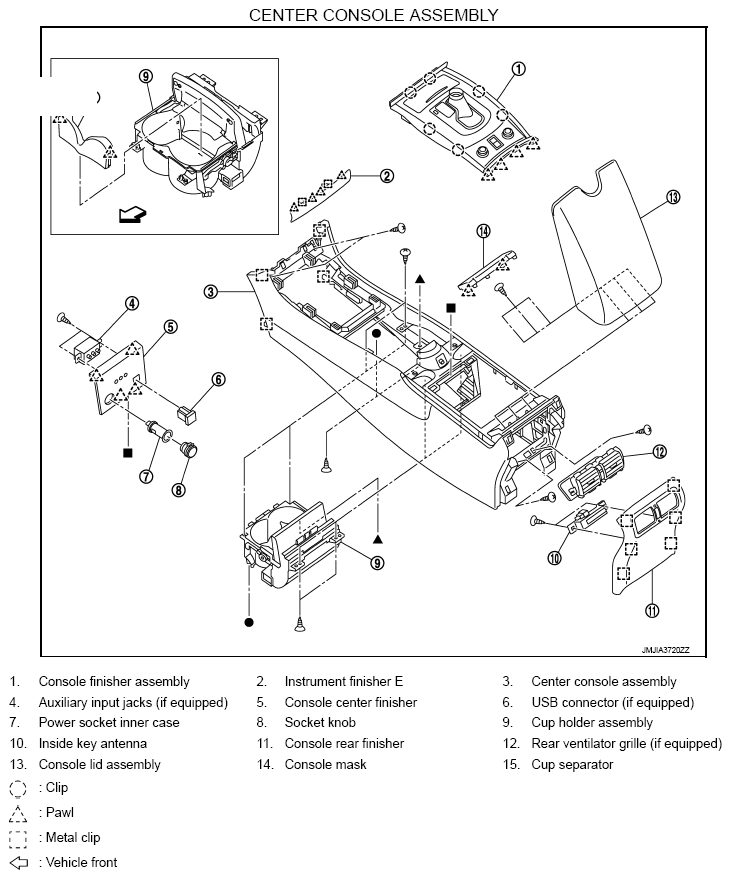

Fig 1: Exploded View Of Center Console Assembly (A/T Models)
G08241456Courtesy of NISSAN NORTH AMERICA, INC.

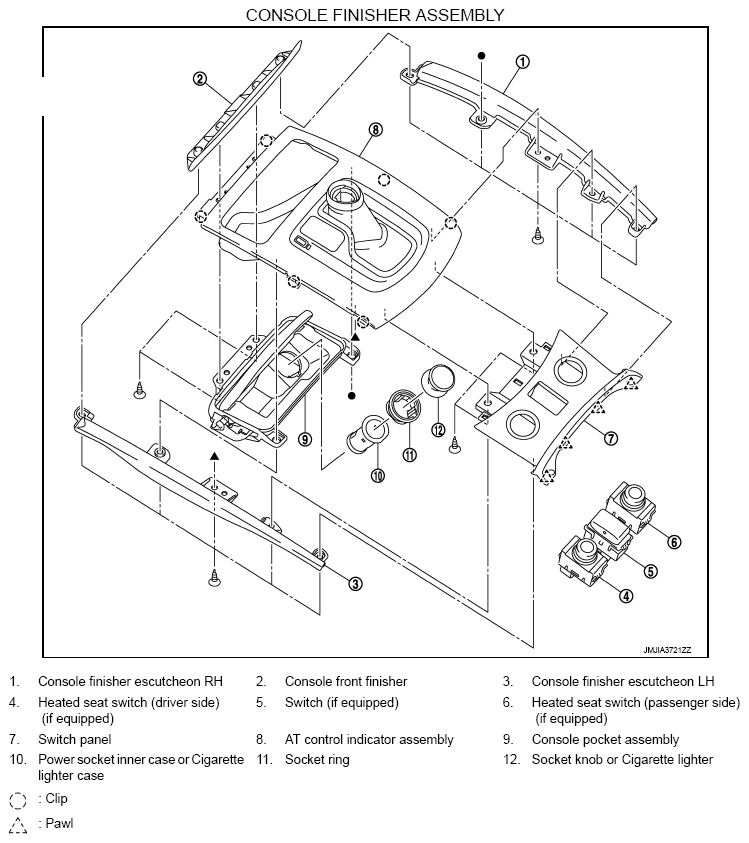

Fig 2: Exploded View Of Console Finisher Assembly
G08241457Courtesy of NISSAN NORTH AMERICA, INC.
