Wiring Diagram - IPDM E/R -

For connector terminal arrangements, harness layouts, and alphabets in a (option abbreviation; if not described in wiring diagram), refer to "CONNECTOR INFORMATION ".

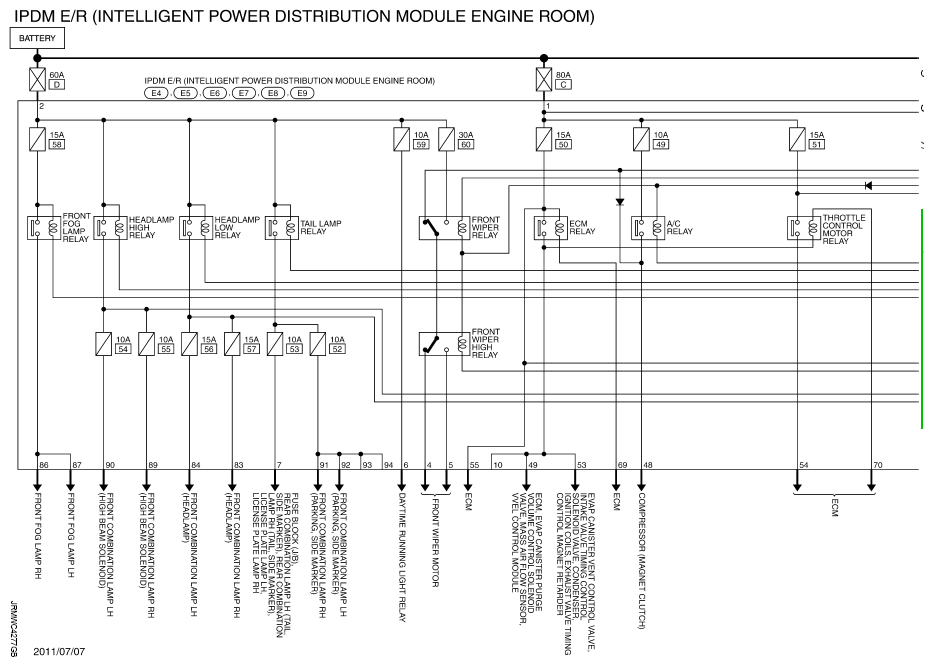

Fig 1: Intelligent Power Distribution Module Engine Room - Wiring Diagram (1 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

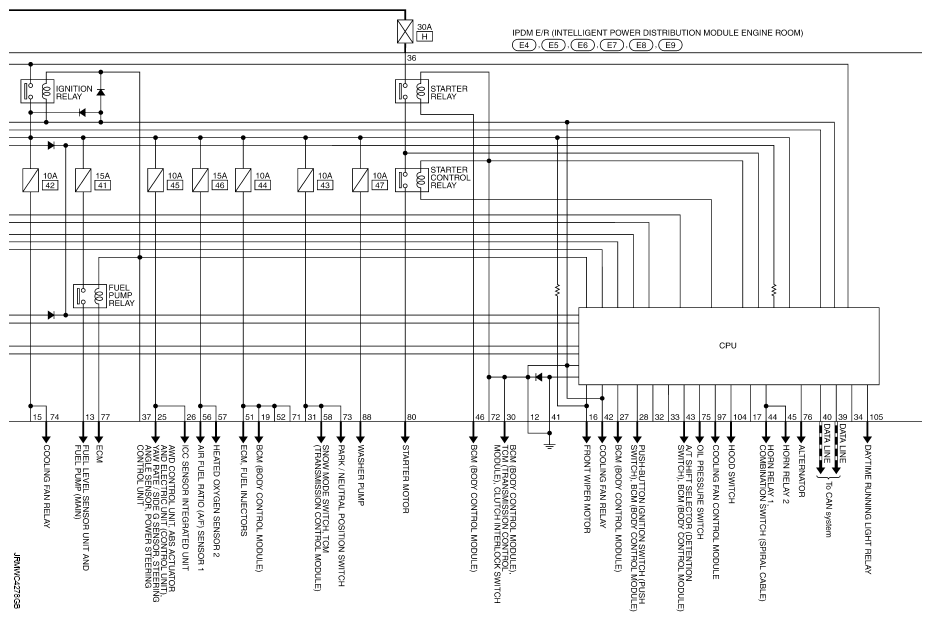

Fig 2: Intelligent Power Distribution Module Engine Room - Wiring Diagram (2 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 3: Intelligent Power Distribution Module Engine Room Wiring Diagram (3 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.
