Wiring Diagram - Horn -

For connector terminal arrangements, harness layouts, and alphabets in a "diamond-shaped" symbol (option abbreviation; if not described in wiring diagram), refer to "CONNECTOR INFORMATION ".

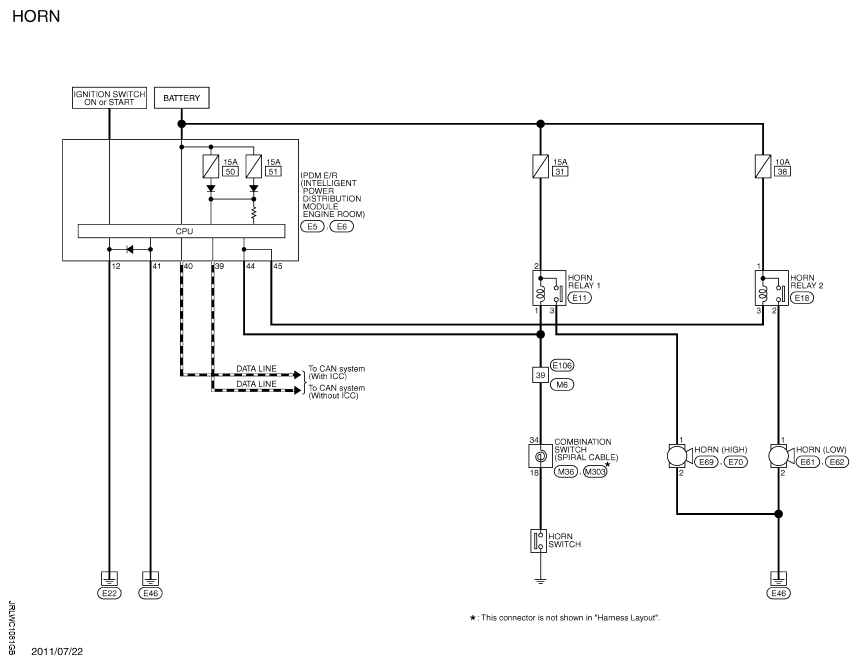

Fig 1: Horn - Wiring Diagram

Courtesy of NISSAN NORTH AMERICA, INC.
