Removal and Installation: Removal

  1. Remove console upper finisher.
    1. Open the console lid.
    2. Remove console upper finisher (1) fixing pawls with remover tool (A).
    3. Pull back console upper finisher.

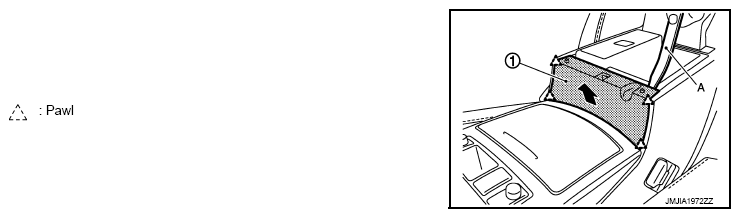

    Fig 1: Removing Console Upper Finisher
    G08226701Courtesy of NISSAN NORTH AMERICA, INC.
  2. Remove console finisher assembly.
    1. Remove selector lever knob. Refer to "REMOVAL AND INSTALLATION ".
    2. Remove console finisher assembly (1) fixing clips with remover tool (A).
    3. Pull up console finisher assembly.
    4. Disconnect harness connector.

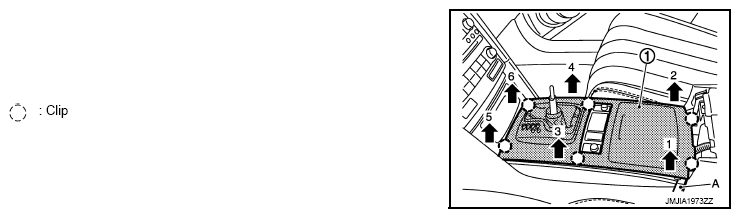

    Fig 2: Removing Console Finisher Assembly
    G08226702Courtesy of NISSAN NORTH AMERICA, INC.
  3. Remove console switch finisher.
    1. Remove console switch finisher (1) fixing screws (A).
    2. Pull up console switch finisher.
    3. Disconnect harness connectors.
    Fig 3: Removing Console Switch Finisher
    G05984799Courtesy of NISSAN NORTH AMERICA, INC.
  4. Remove console pocket assembly.
    1. Pull back console pocket assembly (1), and disengage clips.
    2. Disconnect harness connector.

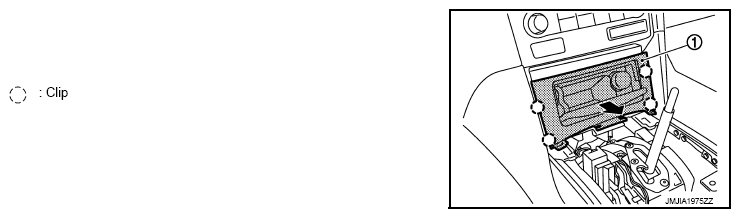

    Fig 4: Removing Console Pocket Assembly
    G08226704Courtesy of NISSAN NORTH AMERICA, INC.
  5. Remove console rear finisher.
    1. Put front seat to front must position.
    2. Pull back the console rear finisher (1) with remover tool (A).
    3. Disconnect harness connectors.

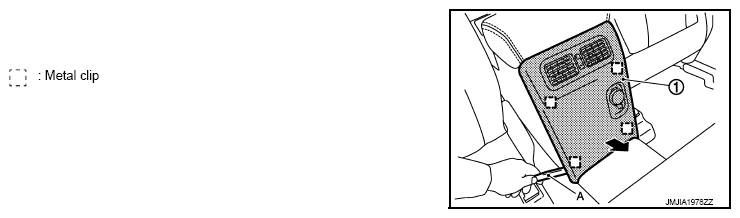

    Fig 5: Removing Console Rear Finisher Using Remover Tool
    G08226705Courtesy of NISSAN NORTH AMERICA, INC.
  6. Remove rear ventilator duct. Refer to "REAR VENTILATOR DUCT 1: REMOVAL AND INSTALLATION ".
  7. Remove center console assembly.
    1. Remove center console fixing screws (A).
      Fig 6: Identifying Center Console Fixing Screws
      G06622769Courtesy of NISSAN NORTH AMERICA, INC.
    2. Disconnect USB connector harness connector. Refer to "CONSOLE POWER SOCKET: REMOVAL AND INSTALLATION ".
    3. Disconnect console power socket harness connector. Refer to "CONSOLE POWER SOCKET: REMOVAL AND INSTALLATION ".
    4. Remove center console assembly fixing screws (A).
      Fig 7: Identifying Center Console Assembly Fixing Screws
      G05984802Courtesy of NISSAN NORTH AMERICA, INC.
    5. Pull back and lift up center console assembly (1).

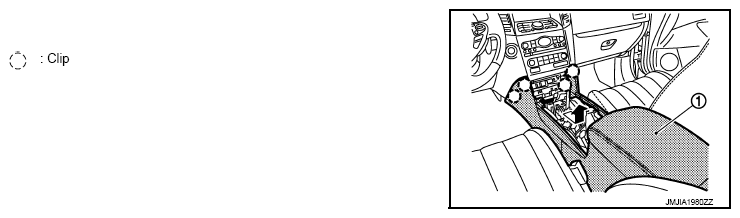

      Fig 8: Lifting Up Center Console Assembly
      G08226708Courtesy of NISSAN NORTH AMERICA, INC.
