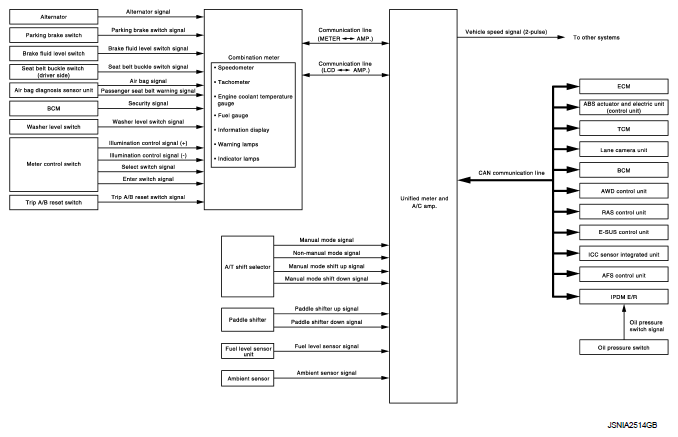

Home >> Infiniti >> 2012 >> FX35 RWD >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Meter, Warning Lamp & Indicator >> System Description >> Meter System >> Meter System >> METER SYSTEM: System Diagram
