IGNITION TIMING: Special Repair Requirement

WARNING: This page is about a different car, the 2012 Infiniti FX50. However, it is still accessible from the selected car via links, so may be relevant.

CHECK IGNITION TIMING
1. Attach timing light to loop wire as shown in the figure.

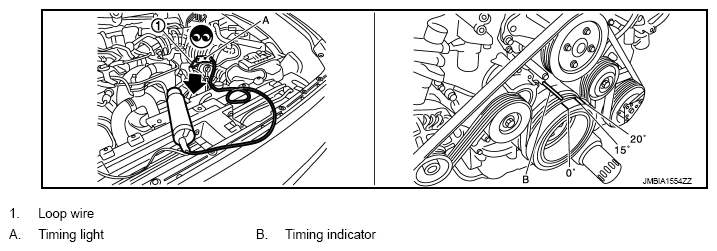

  Fig 1: Inspecting Loop Wire Connections
  Courtesy of NISSAN NORTH AMERICA, INC.
2. Check ignition timing.
: INSPECTION END
