Exploded View

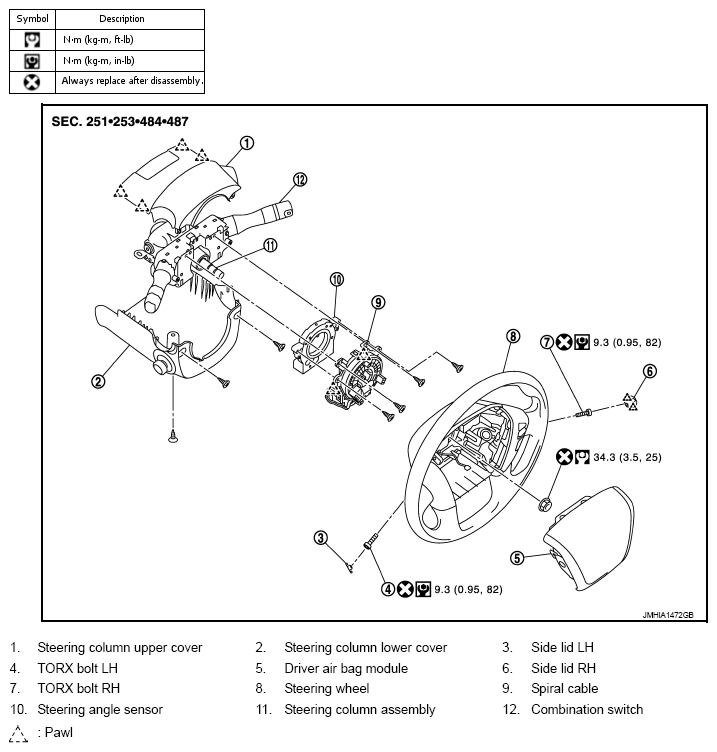

Fig 1: Spiral Cable Replacement Components With Torque Specifications

G07025370

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
