Removal and Installation: Installation

Note the following, and install in the reverse order of removal.

• When installing the transfer to the transmission, install the mounting bolts following the standard below, tighten bolts to the specified torque.
  BOLT SPECIFICATION



  Bolt symbol	A	B
  Insertion direction	Transfer to transmission	Transmission to transfer

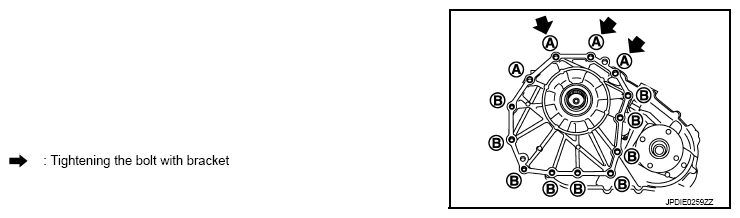

  Fig 1: Locating Mounting Bolts

  Courtesy of NISSAN MOTOR CO., U.S.A.
• When installing transfer breather hose, make sure there are no pinched or restricted areas on the transfer breather hose caused by bending or winding.
  • Install the transfer breather hose (1) of transmission side with the paint mark (A) facing upward and the mark (B) (:) facing right side.
    Fig 2: Identifying Transfer Breather Hose

    Courtesy of NISSAN MOTOR CO., U.S.A.
  • Install the transfer breather hose (1) of transfer side with the paint mark (A) facing upward, and insert breather hose to breather tube (2) until dimension (B) shown as follows.

    B: 20 mm (0.79 in)

    Fig 3: Identifying Mark On Transfer Breather Hose

    Courtesy of NISSAN MOTOR CO., U.S.A.
  • Be sure to fix breather hose in (A) and (B) positions. Fix with the paint mark facing upward in the (A) position.
• Check oil level and check for oil leakage after installation. Refer to "INSPECTION ".
• If replacing transfer assembly, perform writing unit parameter, learning of fluid viscosity and initial calibration. Refer to "WORK PROCEDURE ".

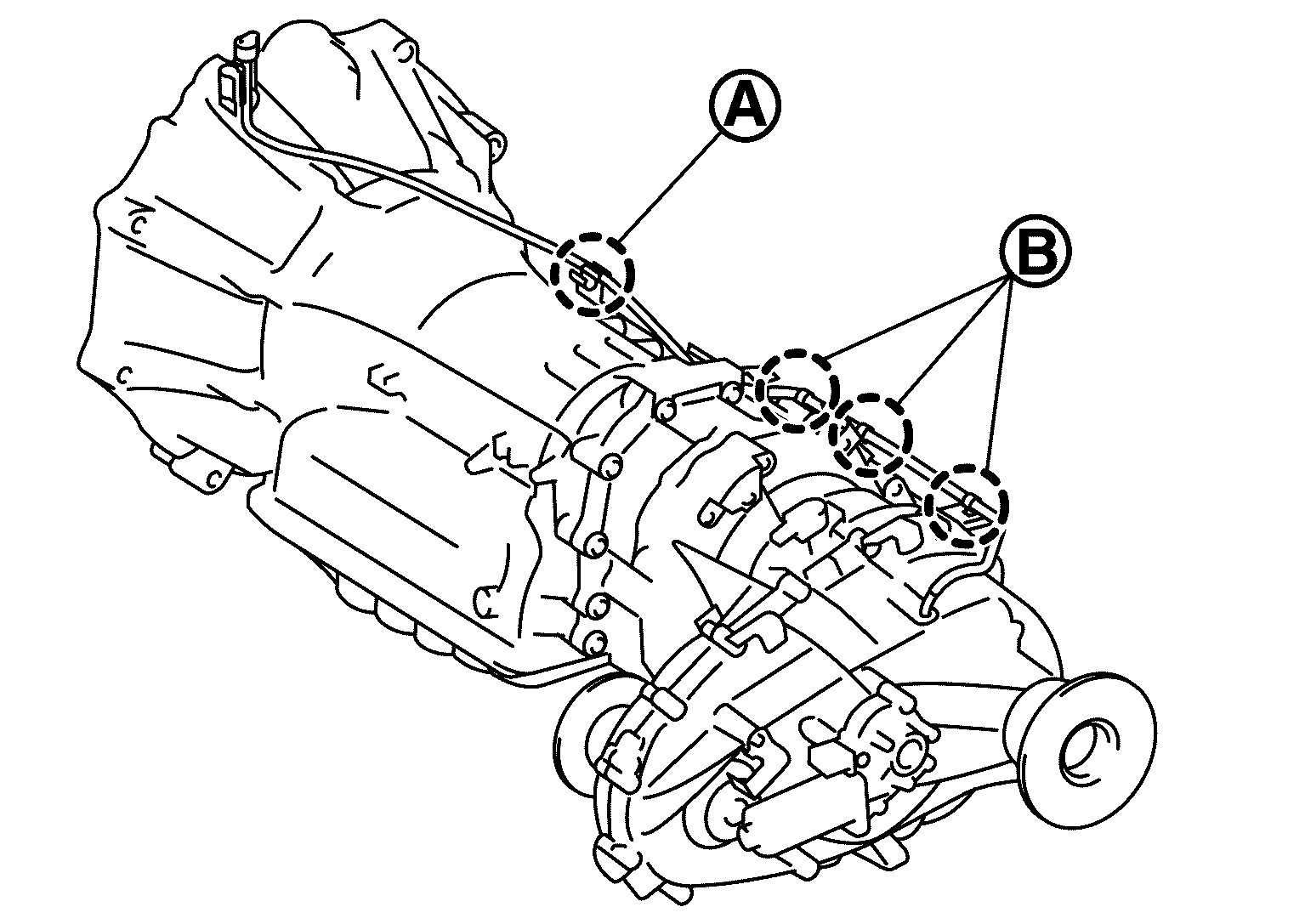

  Fig 4: Identifying Breather Hose Position

  Courtesy of NISSAN MOTOR CO., U.S.A.
