Section 1 (Transfer Case (ATX90A))
>>
Unit Removal And Installation
>>
Transfer Assembly
>>
Exploded View
Exploded View
WARNING:
This page is about a different variant/trim than selected.

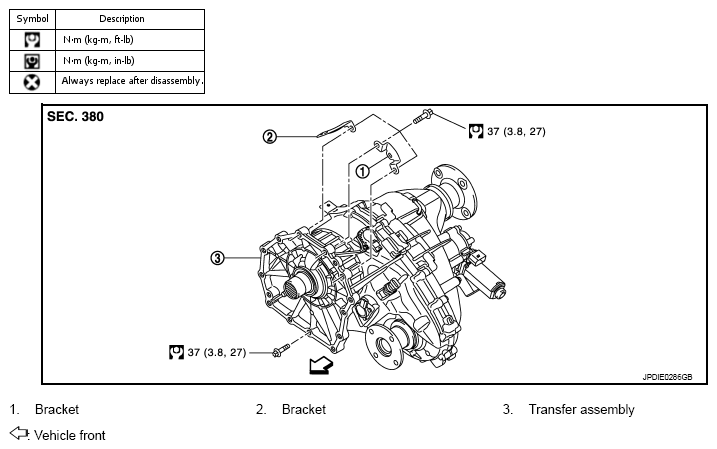

Fig 1: Transfer Assembly Unit Replacement Components With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
