Removal and Installation: Installation

WARNING: This page is about a different variant/trim than selected.

Note the following, and install in the reverse order of removal.

Install input oil seal, with a drift (A) [SST: KV40104710 (-)] until it is flush with the end face of front case with the drift
CAUTION:
- Never reuse input oil seal.
- Apply transfer fluid onto circumference of oil seal.

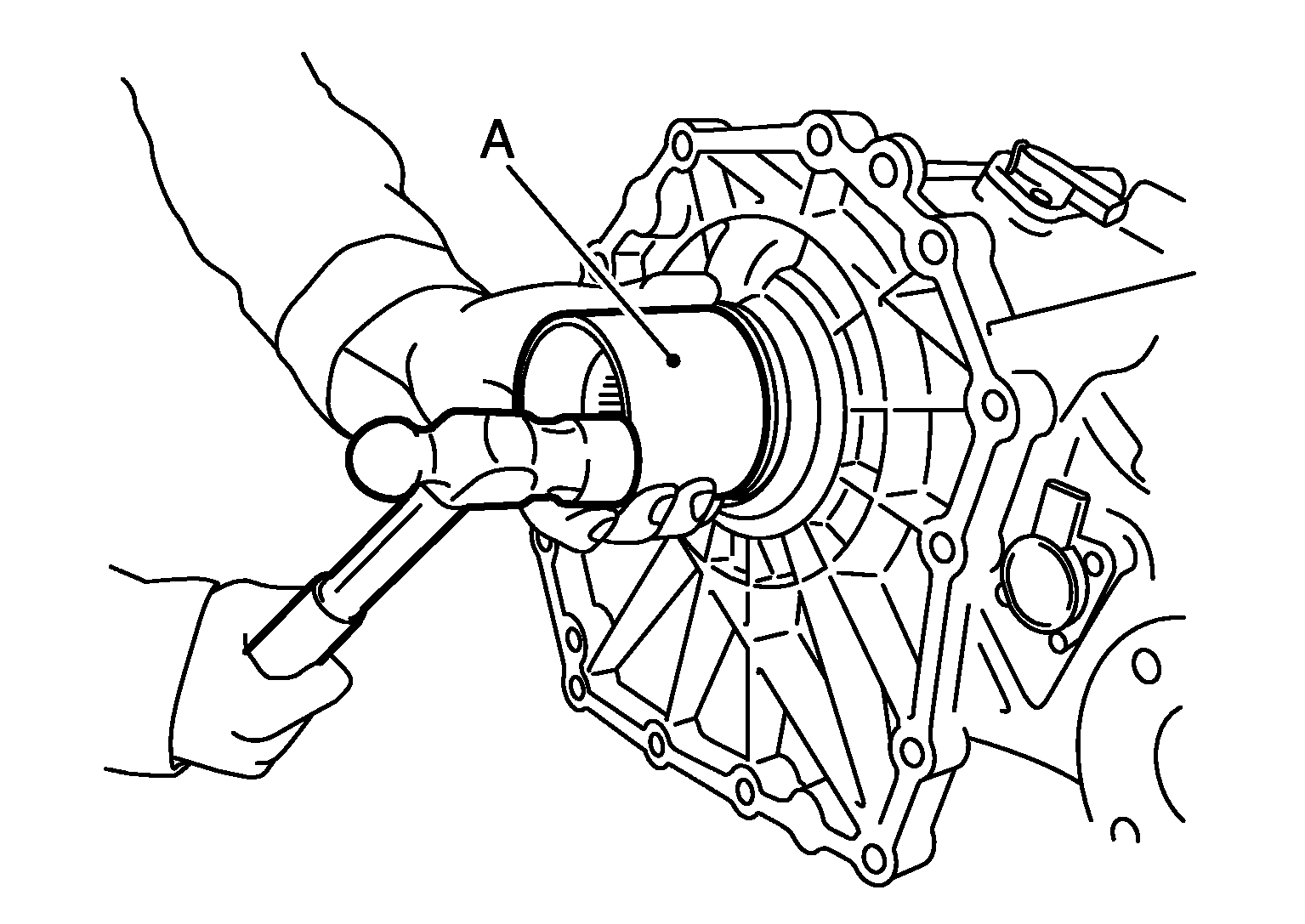

  Fig 1: Installing Input Oil Seal
  Courtesy of NISSAN MOTOR CO., U.S.A.
